Circuit Safeguard: The Art of Integrating TVS Diodes
Lgesemi:
The integration of TVS (Transient Voltage Suppressor) diodes into circuits to provide strong protection against voltage spikes and transient overvoltages is thoroughly examined in this guide. It describes how TVS diodes are positioned strategically in circuit designs, how they interact with other parts, and how this affects system performance as a whole. Learn the useful factors to take into account when choosing the appropriate TVS diode, figuring out the required parameters, and making sure your electronic circuits are adequately shielded from harmful voltage transients.

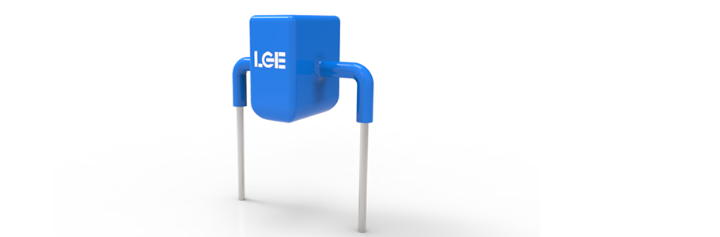

Introduction to TVS Diodes in Circuits
Transient voltage suppressors (TVS) diodes are essential components in modern circuit design, providing robust protection against voltage surges and transients. These semiconductor devices act as fast-acting voltage clamps, diverting excess energy away from sensitive circuitry. Understanding their operation and proper integration is crucial for ensuring the reliability and longevity of electronic systems. This comprehensive guide delves into the intricacies of TVS diode selection, placement, and coordination with other protective devices, empowering engineers to design circuits that can withstand the rigors of real-world operating environments.
The Role of TVS Diodes in Circuit Protection
Voltage transients, often caused by electrostatic discharge (ESD), lightning strikes, or inductive switching, can wreak havoc on electronic components. TVS diodes stand as the first line of defense, safeguarding integrated circuits, microcontrollers, and other vulnerable elements. By rapidly clamping the voltage to a safe level, they prevent damage from these potentially destructive surges, ensuring the continued operation and extending the lifespan of the protected circuitry.
Basics of TVS Diode Operation
TVS diodes operate by exhibiting a highly non-linear impedance characteristic. Under normal operating conditions, they present a high impedance, effectively becoming invisible to the circuit. However, when the voltage across the diode exceeds its breakdown voltage (VBR), the device rapidly transitions to a low impedance state, effectively shorting the transient energy to ground. This rapid response is critical for effectively suppressing fast-rising voltage spikes.
How TVS Diodes Respond to Voltage Transients
Upon encountering a voltage transient exceeding its breakdown voltage, a TVS diode "avalanches," conducting a large current and clamping the voltage to a predetermined level known as the clamping voltage (VC). This clamping action diverts the surge energy away from the protected circuit, preventing damage. The diode returns to its high-impedance state once the transient subsides.
Circuit Design Considerations: Placement and Orientation of TVS Diodes
Proper placement of TVS diodes is crucial for effective protection. Ideally, the diode should be placed as close as possible to the protected circuit, minimizing the length of the trace between the diode and the component being protected. This reduces the inductance of the connection, improving the diode's ability to suppress fast-rising transients. Furthermore, correct orientation is essential, ensuring the diode is connected in the proper polarity to clamp the voltage effectively.
PCB Layout Best Practices for TVS Diode Integration
Careful PCB layout is paramount for optimal TVS diode performance. Minimize trace lengths, use wide traces to reduce impedance, and avoid sharp bends in the traces connected to the diode. Consider using ground planes to provide a low-impedance return path for the surge current. These practices enhance the diode's ability to respond quickly and effectively to voltage transients.
Selecting the Right TVS Diode: Key Parameters
Choosing the appropriate TVS diode requires careful consideration of several key parameters:
Breakdown Voltage (VBR): This is the voltage at which the diode begins to conduct. It should be higher than the normal operating voltage of the circuit but low enough to clamp the voltage before it damages the protected components.
Clamping Voltage (VC): This is the maximum voltage the diode will allow across its terminals during a surge event. It represents the level of protection provided by the diode.
Capacitance: The capacitance of the TVS diode can impact circuit performance, especially in high-speed applications. Choose a diode with low capacitance to minimize signal distortion.
Choosing Between Unidirectional and Bidirectional TVS Diodes
Unidirectional TVS diodes protect against positive transients, while bidirectional diodes protect against both positive and negative transients. The choice depends on the specific application and the nature of the potential threats.
Integration with Other Protection Devices: Coordinating TVS Diodes with Fuses, Relays, and Other Protectors
TVS diodes often work in conjunction with other protective devices, such as fuses and relays. Proper coordination ensures that each device functions effectively without interfering with the others. For example, the fuse should be rated to handle the surge current of the TVS diode without blowing prematurely.
Applications in Different Circuit Environments
TVS diodes find application in a wide range of circuit environments, including:
Consumer Electronics: Protecting power supplies and sensitive signal lines in devices like smartphones and laptops.
Automotive Systems: Safeguarding critical components in ignition systems, sensor circuits, and other automotive electronics.
Industrial Controls: Protecting motor drives, sensor circuits, and other industrial control systems from voltage transients.
Calculating TVS Diode Ratings: Determining the Required Surge Current and Power Ratings
Properly sizing a TVS diode requires calculating the expected surge current and power dissipation. This involves analyzing the potential threat environment and considering factors such as the peak voltage and duration of the transient.
Future Outlook for TVS Diode Circuit Integration: The Role of TVS Diodes in Smart and IoT Devices
As electronic devices become increasingly interconnected and complex, the importance of robust circuit protection grows. TVS diodes will play a vital role in ensuring the reliability and safety of smart and IoT devices, protecting them from the ever-present threat of voltage transients.
Conclusion: The Vital Role of TVS Diodes in Circuit Protection
TVS diodes are indispensable components in modern circuit design, providing essential protection against voltage surges and transients. By understanding their operation, selecting the appropriate device, and implementing best practices for placement and integration, engineers can ensure the reliable and safe operation of electronic systems in a wide range of applications.
Frequently Asked Questions about TVS Diode Circuits
1. What is the difference between a TVS diode and a Zener diode?
While both are used for voltage regulation, TVS diodes are specifically designed for transient suppression. They have a much higher surge current capability than Zener diodes and are optimized for fast response times, making them ideal for protecting against fast-rising voltage spikes. Zener diodes, on the other hand, are better suited for voltage regulation in steady-state conditions.
2. How do I choose the correct breakdown voltage for a TVS diode?
The breakdown voltage should be higher than the maximum operating voltage of the circuit to prevent the diode from conducting under normal conditions. However, it should be low enough to clamp the voltage before it reaches a level that could damage the protected components. Consider the maximum expected operating voltage and add a safety margin to determine the appropriate breakdown voltage.
3. What are the common failure modes of TVS diodes?
The most common failure mode is a short circuit, typically caused by exceeding the diode's power dissipation rating during a surge event. This can result in permanent damage to the diode. Another potential failure mode is a gradual degradation of the breakdown voltage over time, which can reduce the effectiveness of the protection. Properly sizing the diode and ensuring adequate heat dissipation can prevent these failures.
