Comprehensive Guide to Understanding the Fundamentals of Triac Circuits
Lgesemi: Triac circuits are a cornerstone of modern electrical and electronic systems, offering efficient and precise control over alternating current (AC) power. They enable power regulation for applications as varied as lighting systems, motor controls, and industrial automation. This expanded guide delves deeply into the key principles, components, configurations, and applications of triac circuits, illustrating their significance in both everyday technology and advanced engineering solutions.
1. Introduction to Triac Circuits
1.1 Definition and Overview
A Triac (Triode for Alternating Current) is a three-terminal semiconductor device specifically designed to control the flow of AC power. Unlike traditional thyristors, which allow current flow in only one direction, a triac operates bidirectionally. This unique feature simplifies circuit design and reduces the need for additional components, particularly in systems requiring bidirectional current handling.
By conducting during both halves of the AC cycle, triacs allow precise modulation of power delivery, which is invaluable in applications like dimming, motor speed control, and heating systems.
1.2 Importance in Electrical Engineering
Triac circuits are indispensable in electrical engineering due to their ability to:
- Efficiently control high-voltage and high-current loads.
- Simplify AC power control in both household and industrial settings.
- Reduce energy consumption through precise modulation of power output.
Triacs are widely used in technologies ranging from residential dimmer switches to sophisticated industrial automation systems. Their versatility and efficiency have established them as an essential component of modern electrical systems.
2. Components of a Triac Circuit
A triac circuit typically includes several critical elements. Each component plays a vital role in ensuring proper operation, reliability, and safety.
2.1 Triac Device
The central component is the triac itself, a semiconductor device with the following features:
- Three Terminals: Gate (G), Main Terminal 1 (MT1), and Main Terminal 2 (MT2).
- Bidirectional Operation: Capable of conducting in both directions, depending on the AC cycle and the applied gate signal.

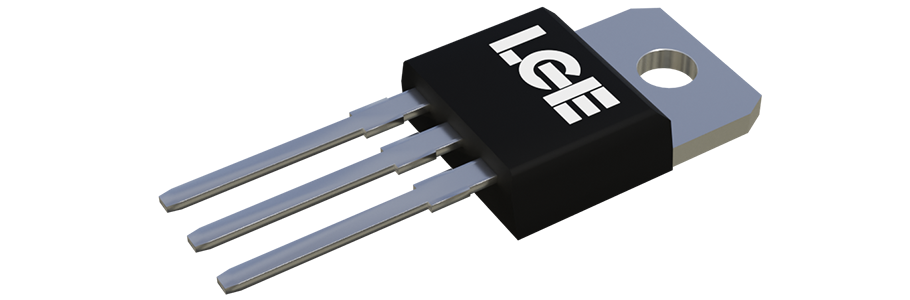

- Compact Size: Typically available in packages like TO-220, facilitating integration into circuit boards.
2.2 Gate Drive Circuit
The gate terminal controls the triac's switching behavior. Additional components such as resistors and diodes are often included to manage gate voltage and current. For enhanced control, components like:
- Diacs (trigger devices for stable gate pulses),
- Optocouplers (for isolation between control and power circuits), and
- Microcontrollers (for programmable and precise triggering), are used.
2.3 Snubber Circuit
To protect the triac from voltage transients and inductive load spikes, a snubber circuit (resistor and capacitor in series) is included. This prevents excessive voltage stress that could damage the device.
2.4 Heat Management
Triacs dissipate heat during operation. Heat sinks and, in high-power applications, active cooling solutions like fans, are essential for maintaining safe operating temperatures.
3. Principles of Operation
3.1 How Triacs Work
Triacs modulate power delivery by controlling when conduction occurs during each AC cycle. This is achieved by:
- Applying a trigger signal to the gate terminal at a specific point in the AC waveform.
- Allowing current to flow between MT1 and MT2 for the remainder of the half-cycle.
3.2 Triggering Mechanisms
The triac starts conducting when a small current pulse is applied to the gate terminal. Common triggering methods include:
- Diac Triggering: Ensures precise and consistent gate signals.
- Optocoupler Triggering: Provides electrical isolation and enhances safety.
- Microcontroller Control: Offers highly customizable triggering for advanced applications, such as programmable dimmers or motor controllers.
3.3 Turn-On and Turn-Off
- Turn-On: Triggered when the gate receives a pulse, initiating conduction between MT1 and MT2.
- Turn-Off: Occurs naturally when the current through the triac drops below the holding current at the zero-crossing point of the AC waveform. This automatic turn-off is essential for safe and efficient operation.
4. Triac Circuit Configurations
4.1 Phase Control Circuits
Phase control is the most common application of triacs, used to regulate the power delivered to a load by varying the conduction angle. Applications include:
- Light Dimmers: Adjust the brightness of incandescent and dimmable LED lights.
- Motor Controllers: Precisely regulate the speed of AC motors in fans and conveyor belts.
4.2 Zero-Crossing Circuits
These circuits trigger the triac only at the zero-crossing point of the AC waveform, minimizing electrical noise and reducing stress on the triac and the load. Zero-crossing triggering is widely used in applications requiring low EMI, such as:
- High-efficiency lighting systems.
- Sensitive industrial automation controls.
4.3 Series and Parallel Configurations
- Series Configuration: Used to divide the voltage across multiple triacs, enabling the circuit to handle higher voltages.
- Parallel Configuration: Increases current-handling capacity by sharing the load current across multiple triacs.
5. Applications of Triac Circuits
Triac circuits are integral to various fields, showcasing their versatility and efficiency.
5.1 Lighting Systems
Triac-based dimmer switches provide smooth control over light intensity in:
- Residential spaces.
- Commercial establishments.
- Theatrical lighting setups.
5.2 Motor Speed Control
Triac circuits are widely used to control the speed of AC motors, ensuring efficient operation in:
- Household appliances (e.g., blenders, fans).
- Industrial systems (e.g., conveyor belts, HVAC systems).
5.3 Heating Systems
Triacs regulate power to heating elements in:
- Electric ovens.
- Water heaters.
- Industrial furnaces.
5.4 Industrial Automation
In automation, triacs control high-power machinery and processes, including:
- Robotic systems.
- Conveyor systems.
- Process control mechanisms.
6. Advantages and Limitations
6.1 Advantages
- High Efficiency: Minimal power loss during operation.
- Bidirectional Control: Simplifies circuit design for AC applications.
- Cost-Effectiveness: Affordable compared to alternative power control devices.
- Compact Design: Enables integration into space-constrained systems.
6.2 Limitations
- Heat Generation: Requires effective heat management solutions.
- Noise Susceptibility: Electrical noise can affect operation, necessitating proper shielding and filtering.
- Design Complexity: Trigger circuits and snubber designs add to the overall complexity.
7. Conclusion
Triac circuits are fundamental to AC power control, offering efficient, versatile, and cost-effective solutions for diverse applications. Their bidirectional operation, robust performance, and wide range of configurations make them indispensable in lighting, motor control, heating, and industrial automation systems.
Key Takeaways
- Triacs regulate AC power by controlling conduction during each waveform cycle.
- Common configurations include phase control and zero-crossing detection circuits.
- Applications range from lighting systems to industrial machinery control.
- While triacs require careful design to manage heat and noise, their benefits far outweigh these challenges.
As technology advances, triac circuits will continue to evolve, driving innovations in power control and automation. For electrical engineers and designers, mastering triac circuits is essential for creating efficient and reliable systems.
