How Does a Full Wave Bridge Rectifier Work?
Lgesemi: A full wave bridge rectifier is an electronic circuit designed to convert alternating current (AC) into direct current (DC). This conversion is essential for powering various electronic devices that require a stable DC supply. The bridge rectifier achieves this by using four diodes in a specific configuration, ensuring that the output voltage remains positive regardless of the input AC signal's direction.

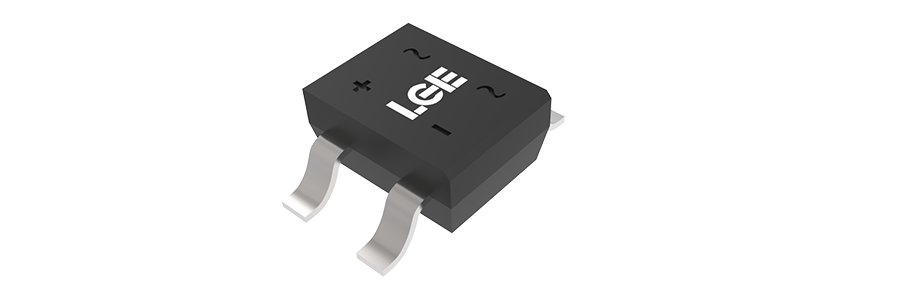

Introduction to Full Wave Bridge Rectifiers
Importance in Electronic Circuits
The full wave bridge rectifier is pivotal in electronic circuits due to its efficiency and simplicity. It provides a more consistent and higher average output voltage compared to half-wave rectifiers. This makes it ideal for applications where a steady and reliable DC power source is crucial, such as in power supplies for computers, chargers, and various industrial equipment.
Components of a Full Wave Bridge Rectifier
Diodes and Their Roles
The core component of a full wave bridge rectifier is the four diodes arranged in a bridge configuration. These diodes allow current to flow through them in one direction only, thereby converting the AC input into a pulsating DC output. During the positive half-cycle of the AC input, two diodes conduct, and during the negative half-cycle, the other two diodes conduct, ensuring that the output is always in the same polarity.
Transformer (if used)
In some configurations, a transformer is employed before the diodes to step down or step up the voltage level of the AC input. The transformer helps in matching the input voltage to the required level for the rectification process, making the system more versatile and adaptable to different voltage requirements.
Load Resistor
The load resistor is connected across the output of the rectifier to provide a path for the current and to simulate the actual load in practical applications. It also helps in stabilizing the output voltage by dissipating excess energy as heat.
Working Principle
How the Bridge Configuration Works
The bridge configuration consists of four diodes arranged in a diamond shape with the AC input connected to the two opposite corners and the DC output taken from the other two opposite corners. This arrangement ensures that during each half-cycle of the AC input, a pair of diodes conducts, allowing current to flow through the load in the same direction.
Positive and Negative Half-Cycles of AC Input
During the positive half-cycle of the AC input, diodes D1 and D2 conduct, while D3 and D4 are reverse-biased and do not conduct. Conversely, during the negative half-cycle, diodes D3 and D4 conduct, while D1 and D2 are reverse-biased. This continuous conduction ensures that the output voltage remains positive throughout the AC cycle.
Output Waveform Characteristics
The output waveform of a full wave bridge rectifier is a pulsating DC signal with twice the frequency of the input AC signal. This results in a smoother and more consistent voltage level compared to half-wave rectification, which has a pulsating output at the same frequency as the input AC signal.
Advantages and Disadvantages
Efficiency and Power Loss
One of the primary advantages of a full wave bridge rectifier is its high efficiency. Since it utilizes both halves of the AC cycle, it provides a higher average output voltage and reduces power loss. However, there are still some inherent losses due to the forward voltage drop across the diodes and the heat generated in the load resistor.
Cost and Complexity
While the full wave bridge rectifier is relatively simple in design, it does require four diodes and possibly a transformer, which can increase the overall cost and complexity of the circuit. Additionally, the need for proper heat dissipation mechanisms, such as heat sinks, can further add to the complexity and cost.
Comparison with Other Rectifiers (e.g., Half-Wave, Center-Tapped)
Compared to half-wave rectifiers, which only use one half of the AC cycle, full wave bridge rectifiers are more efficient and provide a higher average output voltage. Center-tapped rectifiers, on the other hand, use a center-tapped transformer and two diodes but are less efficient than full wave bridge rectifiers due to their reliance on the center tap for proper operation.
Applications
Examples of Electronic Devices That Use Full Wave Bridge Rectifiers
Full wave bridge rectifiers are widely used in various electronic devices, including:
- Power supplies for computers and laptops
- Battery chargers for mobile phones and tablets
- Industrial control systems
- Medical equipment
- Audio amplifiers
Power Supplies for Various Systems
In power supply units, full wave bridge rectifiers are essential for converting the AC mains supply into a stable DC voltage required by the system. They ensure that the output voltage remains constant even when the input AC voltage fluctuates, providing a reliable power source for sensitive electronic components.
Industrial and Commercial Uses
In industrial and commercial settings, full wave bridge rectifiers are used in motor drives, uninterruptible power supplies (UPS), and other equipment that requires a stable DC power source. Their efficiency and reliability make them suitable for demanding applications where power quality is critical.
FAQs
1. What is the main advantage of using a full wave bridge rectifier over a half-wave rectifier? The main advantage of a full wave bridge rectifier over a half-wave rectifier is its ability to utilize both halves of the AC input cycle, resulting in a higher average output voltage and improved efficiency. This leads to a smoother DC output with less ripple, making it more suitable for applications requiring a stable power source.
2. Can a full wave bridge rectifier be used without a transformer? While it is possible to use a full wave bridge rectifier without a transformer, doing so may limit its versatility and efficiency. A transformer helps in adjusting the voltage level of the AC input to match the requirements of the load, ensuring optimal performance of the rectifier. Without a transformer, the rectifier would need to handle the full voltage of the AC mains, which could lead to higher power losses and reduced efficiency.
3. How can I improve the efficiency of a full wave bridge rectifier? To improve the efficiency of a full wave bridge rectifier, you can use low forward voltage drop diodes to minimize power losses. Additionally, ensuring proper heat dissipation through heat sinks or cooling mechanisms can help maintain the diodes' performance and reduce thermal stress. Using a high-quality transformer with minimal winding resistance can also enhance the overall efficiency of the rectifier by reducing copper and iron losses.
