Instant Protection: The Power of TVS Diodes in Circuit Defense
Lgesemi:
Any electronics engineer's toolkit must include TVS (Transient Voltage Suppressor) diodes, which shield delicate circuits from the damaging effects of transient overvoltages and voltage spikes. By directing excessive voltage to ground and clamping voltage levels within safe bounds, these sturdy devices protect the integrity of electronic systems. This guide highlights the significance of TVS diodes in guaranteeing the dependability and longevity of contemporary electronic devices by providing a thorough examination of TVS diodes, their working mechanisms, important specifications, and a broad range of applications, from consumer electronics to industrial control systems.
TVS diodes are crucial components in modern electronics, providing robust protection against transient voltage surges. These surges, often caused by electrostatic discharge (ESD), lightning strikes, or inductive switching, can wreak havoc on sensitive circuitry. Understanding how TVS diodes function and how to effectively integrate them into your designs is essential for ensuring the reliability and longevity of your electronic devices.

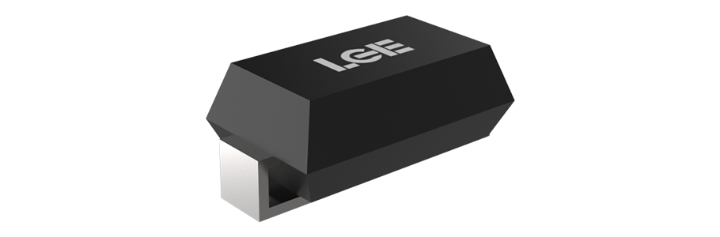

Introduction to TVS Diodes: Safeguarding Your Circuits
TVS diodes are specialized semiconductor devices designed to react rapidly to overvoltage transients, diverting surge current away from sensitive components. They act as high-speed voltage clamps, effectively limiting the voltage across their terminals to a safe level. This prevents damage to downstream circuitry, ensuring continued operation and preventing costly repairs or replacements. Think of them as the safety valves of the electronics world, protecting against potentially destructive pressure surges.
Understanding Transient Voltage Suppression: The Need for Protection
Transient voltage surges can be incredibly destructive. These brief, high-energy spikes can exceed the normal operating voltage of electronic components by orders of magnitude. Sources of these transients range from everyday occurrences like ESD to more extreme events like lightning strikes. Without adequate protection, these surges can damage or destroy sensitive integrated circuits, leading to device malfunction and system failure. TVS diodes offer a cost-effective and efficient solution to mitigate these risks.
How TVS Diodes Work: A Deep Dive into the Physics
TVS diodes operate by leveraging the avalanche breakdown phenomenon inherent in semiconductor junctions. Under normal operating conditions, the diode presents a high impedance, effectively blocking current flow. However, when the voltage across the diode exceeds its breakdown voltage (VBR), the diode rapidly transitions to a low impedance state, effectively clamping the voltage and diverting the surge current away from the protected circuit. This rapid response is critical for effectively suppressing fast-rising transients.
The Clamping Action and Surge Protection: A Shield Against Overvoltage
The clamping action of a TVS diode is its primary protective mechanism. When a transient voltage surge occurs, the diode's impedance drops dramatically, effectively clamping the voltage to a predetermined level, known as the clamping voltage (VC). This clamping action diverts the surge current through the diode, protecting the downstream circuitry from the damaging effects of the overvoltage. The diode returns to its high-impedance state once the transient has passed.
Key Specifications of TVS Diodes: Choosing the Right Protection
Selecting the appropriate TVS diode for a specific application requires careful consideration of several key specifications. Understanding these parameters is crucial for ensuring effective and reliable circuit protection.
Breakdown Voltage, Clamping Voltage, and Capacitance: Critical Parameters
- Breakdown Voltage (VBR): This is the voltage at which the diode begins to conduct in avalanche mode. It must be higher than the normal operating voltage of the circuit but low enough to activate before the transient reaches a damaging level.
- Clamping Voltage (VC): This is the maximum voltage that will appear across the diode during a surge event. It represents the level of protection provided by the diode.
- Capacitance: The capacitance of the TVS diode can impact the high-frequency performance of the circuit. Lower capacitance is generally preferred for high-speed applications.
Maximum Surge Current and Power Rating: Handling the Surge
- Maximum Surge Current (IPP): This is the maximum peak pulse current that the diode can safely handle without damage. It must be sufficient to absorb the energy of the expected transient.
- Power Rating: This specifies the maximum power that the diode can dissipate without failure. It is crucial for ensuring the long-term reliability of the protection circuit.
Types of TVS Diodes: Tailoring Protection to Your Needs
TVS diodes are available in various configurations to suit different application requirements.
Unidirectional and Bidirectional TVS Diodes: Choosing the Right Direction
- Unidirectional TVS Diodes: These diodes protect against positive transients only and are often used in DC circuits.
- Bidirectional TVS Diodes: These diodes protect against both positive and negative transients and are commonly used in AC circuits or applications where bidirectional protection is required.
Differences and Application Considerations: Making Informed Decisions
Choosing between unidirectional and bidirectional TVS diodes depends on the specific application and the nature of the expected transients. Understanding the characteristics of each type is crucial for selecting the most appropriate device.
Applications of TVS Diodes: Protecting Across Industries
TVS diodes are used extensively across various industries to protect sensitive electronics from transient voltage surges.
Consumer Electronics: Smartphones, Computers, and Appliances
In consumer electronics, TVS diodes protect sensitive components from ESD and other transient events, ensuring reliable operation and extending product lifespan.
Automotive Systems: Infotainment and Engine Controls
In automotive applications, TVS diodes safeguard critical systems like engine control units and infotainment systems from voltage spikes caused by load dumps and other electrical disturbances.
Industrial Controls: Robotics and Automation
Industrial environments often present harsh electrical conditions, making TVS diodes essential for protecting sensitive control circuitry in robotics, automation systems, and other industrial equipment.
Circuit Design with TVS Diodes: Best Practices for Effective Protection
Proper circuit design is critical for maximizing the effectiveness of TVS diodes.
Placement Strategies and PCB Layout Tips: Optimizing Performance
Careful placement of the TVS diode close to the protected circuit minimizes the inductance between the diode and the protected component, improving the effectiveness of the surge suppression.
Coordinating with Other Protection Devices: A Multi-Layered Approach
TVS diodes can be combined with other protection devices, such as fuses and varistors, to create a comprehensive surge protection strategy.
Conclusion: The Essential Role of TVS Diodes in a Voltage-Volatile World
TVS diodes play a vital role in protecting electronic circuits from the damaging effects of transient voltage surges. Understanding their operation, key specifications, and proper application techniques is crucial for ensuring the reliability and longevity of electronic devices in today's increasingly voltage-volatile world.
Frequently Asked Questions about TVS Diodes
1. What is the difference between a TVS diode and a Zener diode?
While both diodes exhibit avalanche breakdown, TVS diodes are specifically designed for surge protection and can handle significantly higher surge currents than Zener diodes. Zener diodes are primarily used for voltage regulation.
2. How do I choose the correct breakdown voltage for a TVS diode?
The breakdown voltage should be higher than the maximum normal operating voltage of the circuit but lower than the maximum voltage that can damage the protected components.
3. Can TVS diodes protect against ESD?
Yes, TVS diodes are highly effective at suppressing ESD events, which are a common source of transient voltage surges. They are frequently used in consumer electronics and other applications where ESD protection is critical.
