Is BTA40-600B the Right TRIAC for Your AC Switching Needs?
Lgesemi: As an engineer at Luguang Electronic specializing in discrete semiconductors, I'm often asked about the suitability of various TRIAC models for different applications. Today, we're diving deep into the BTA40-600B TRIAC to determine if it's the optimal choice for your AC switching requirements.
Comprehensive Overview of BTA40-600B TRIAC
The BTA40-600B is a high-performance TRIAC designed for general-purpose AC switching applications. Manufactured by STMicroelectronics, this device has gained popularity in various industries due to its robust construction and reliable performance.
Key Electrical Parameters
Let's start by examining the critical electrical parameters that define the BTA40-600B's capabilities:
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Repetitive Peak Off-State Voltage | VDRM / VRRM | 600 | V |
| RMS On-State Current | IT(RMS) | 40 | A |
| Peak Surge Current (Non-repetitive) | I TSM | 400 | A |
| Gate Trigger Voltage | Vgt | ≤1.5 | V |
| Gate Trigger Current | Igt | 15-300 | mA |
| Holding Current | Ih | 16-25 | mA |
| Operating Temperature Range | TJ | -40°C to 150°C |
These specifications highlight the TRIAC's ability to handle substantial current loads while maintaining stable operation across a wide temperature range.
Mechanical and Packaging Details

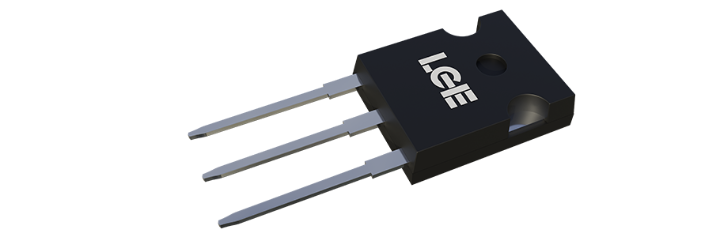

The BTA40-600B comes in an RD91 package, which is a three-terminal device with an insulated tab rated at 2500 V RMS. This packaging not only provides excellent thermal performance but also ensures electrical insulation, making it suitable for applications where safety and reliability are paramount.
Comparative Analysis with Similar TRIACs
To better understand the BTA40-600B's position in the market, let's compare it with two other popular TRIAC models: the BTA41-600B and the BTA40-800B.
BTA40-600B vs. BTA41-600B
While both TRIACs share similar voltage ratings (600V), the BTA41-600B typically offers slightly higher surge current handling capabilities due to its different internal construction. However, the BTA40-600B excels in applications requiring lower gate trigger currents, making it more efficient in certain circuit designs.
BTA40-600B vs. BTA40-800B
The primary difference here is the voltage rating. The BTA40-800B has an 800V rating, making it suitable for higher voltage applications. However, this comes at the cost of slightly reduced current handling capabilities compared to the BTA40-600B.
Applications and Use Cases
The versatility of the BTA40-600B makes it suitable for a wide range of applications:
- Industrial Control Systems: Ideal for motor speed controllers and soft start circuits.
- Heating Systems: Perfect for temperature regulation in heating elements.
- Lighting Systems: Suitable for dimmer circuits and lighting control systems.
- Welding Equipment: Provides reliable power control in welding applications.
- Renewable Energy Systems: Used in inverters and power conditioning circuits.
Advantages and Considerations
Advantages
- High Current Handling: The 40A RMS rating allows it to manage substantial loads.
- Wide Temperature Range: Operates effectively from -40°C to 150°C.
- Insulated Package: The 2500V RMS insulated tab enhances safety in high-voltage applications.
- Low Gate Trigger Requirements: Simplifies circuit design with lower gate trigger currents.
Considerations
- Voltage Limitations: While 600V is substantial, higher voltage applications may require the BTA40-800B.
- Thermal Management: Proper heat sinking is essential to maintain performance under heavy loads.
- Circuit Design: Requires careful consideration of gate triggering circuitry to ensure reliable operation.
Conclusion
The BTA40-600B TRIAC stands out as a reliable and versatile component for numerous AC switching applications. Its robust electrical parameters, combined with a safe and efficient packaging design, make it a preferred choice in many industrial and consumer electronics. However, the decision to use this TRIAC should be based on a thorough analysis of your specific application requirements, particularly regarding voltage needs and thermal management considerations.
FAQ
Q1: How do I test a BTA40-600B TRIAC with a multimeter?A1: To test a BTA40-600B TRIAC, set your multimeter to the resistance setting. Identify the three terminals: T1, T2, and G. Measure the resistance between T1 and T2; it should be high when the TRIAC is off. Then, connect the gate (G) to T1 while measuring between T2 and T1; the resistance should drop significantly if the TRIAC is functioning properly.
Q2: What are common failure modes of the BTA40-600B?
A2: Common failure modes include overheating due to insufficient heat sinking, overvoltage conditions exceeding the 600V rating, and excessive surge currents beyond the 400A non-repetitive surge rating. Proper circuit protection and thermal management can mitigate these risks.
Q3: Can the BTA40-600B be used in inductive load applications?
A3: Yes, the BTA40-600B can be used with inductive loads, but additional considerations are necessary. Since inductive loads can generate voltage spikes when switched off, it's advisable to use snubber circuits to absorb these spikes and prevent damage to the TRIAC.
