Mastering IGBT Diodes: The Ultimate Guide to Their Applications and Advantages
Lgesemi:
Explore the world of Insulated Gate Bipolar Transistor (IGBT) Diodes with our in-depth guide, which covers their special qualities, uses, and advantages. IGBT diodes are perfect for high-power and high-frequency applications because they combine the benefits of BJTs and MOSFETs. This resource will give you the information you need to comprehend the main features of IGBT diodes, how they operate, and why different industries favor them. This guide is your go-to resource whether you're a student interested in learning about cutting-edge semiconductor devices or an engineer trying to optimize your designs.
IGBT diodes are critical components in power electronics, offering a unique blend of high efficiency and robust performance. This comprehensive guide delves into the intricacies of IGBT diodes, exploring their functionality, advantages, applications, and key selection criteria. Whether you're an engineer designing a new system or a technician troubleshooting existing equipment, this resource provides the expert insights you need to harness the full potential of IGBT technology.
Introduction to IGBT Diodes
Insulated Gate Bipolar Transistors (IGBTs) represent a significant advancement in power semiconductor technology. They bridge the gap between the speed of MOSFETs and the high current-carrying capacity of BJTs, making them ideal for a wide range of high-power applications.

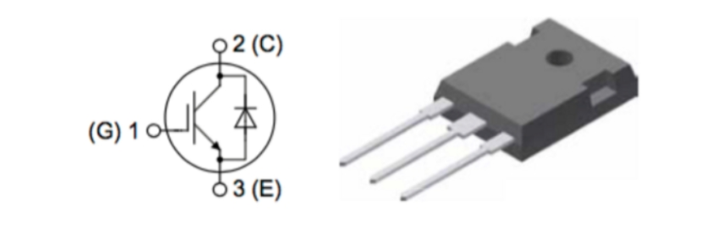

What is an IGBT?
An IGBT is a three-terminal power semiconductor device primarily used as an electronic switch. It combines the low input impedance and fast switching characteristics of a MOSFET with the high current density and low saturation voltage of a BJT. This unique combination allows for efficient switching of high voltages and currents with minimal power loss.
Combining Features of MOSFETs and BJTs
The hybrid nature of IGBTs stems from their unique internal structure. The input stage is a MOSFET, providing voltage-controlled gate operation, while the output stage is a BJT, enabling high current conduction. This structure allows the IGBT to handle significantly higher power levels than a MOSFET alone, while maintaining faster switching speeds than a BJT.
How IGBT Diodes Work: Basic Principles of Operation
IGBTs operate by modulating the conductivity between the collector and emitter terminals. Applying a positive voltage to the gate activates the MOSFET section, creating a channel that allows current to flow from the collector to the emitter. Removing the gate voltage turns the device off, effectively blocking current flow.
Understanding the Insulated Gate
The "insulated gate" in IGBT refers to the MOSFET structure at the input. This insulation prevents direct current flow between the gate and other terminals, resulting in very low gate current requirements and simplified drive circuitry.
Key Characteristics of IGBT Diodes
Several key characteristics define the performance of IGBT diodes:
Voltage and Current Ratings
IGBTs are available in a wide range of voltage and current ratings, catering to diverse application needs. Selecting the appropriate ratings is crucial for ensuring reliable operation and preventing device failure.
Switching Speed and Efficiency
IGBTs offer significantly faster switching speeds compared to traditional BJTs, minimizing switching losses and enabling higher operating frequencies. This improved efficiency translates to reduced power consumption and heat generation.
Advantages of Using IGBT Diodes
The widespread adoption of IGBTs is driven by several key advantages:
High Power Handling Capability
IGBTs excel in high-power applications, handling significantly higher voltages and currents than MOSFETs. This capability makes them ideal for demanding applications such as motor drives and power converters.
Low On-State Losses
The low on-state resistance of IGBTs minimizes power dissipation during conduction, resulting in increased overall system efficiency.
Improved Switching Performance
The fast switching speeds of IGBTs reduce switching losses and enable higher operating frequencies, leading to more compact and efficient power electronic systems.
Applications Across Industries
IGBTs find applications in a diverse range of industries, including:
Motor Control and Drives
IGBTs are widely used in variable speed drives for controlling the speed and torque of electric motors in applications ranging from industrial automation to electric vehicles.
Renewable Energy Systems
In renewable energy systems, IGBTs play a crucial role in power conversion and grid integration, enabling efficient utilization of solar and wind power.
Industrial Automation
IGBTs are essential components in various industrial automation systems, including robotics, welding equipment, and power supplies.
Selecting the Right IGBT Diode
Choosing the right IGBT diode requires careful consideration of several factors:
Factors to Consider for Optimal Selection
Key selection criteria include voltage and current ratings, switching speed, operating temperature, and packaging. Understanding these parameters is crucial for ensuring optimal performance and reliability.
Matching Diode Specifications to Application Needs
The specific application requirements dictate the choice of IGBT diode. For example, high-frequency applications demand faster switching speeds, while high-power applications require higher voltage and current ratings.
Maintenance, Testing, and Troubleshooting
Proper maintenance and testing are essential for ensuring the long-term reliability of IGBT diodes:
Routine Checks for IGBT Diodes
Regularly checking for signs of wear and tear, such as overheating or loose connections, can prevent premature failure.
Diagnosing and Addressing Common Issues
Understanding common IGBT failure modes and troubleshooting techniques can minimize downtime and ensure efficient system operation.
Frequently Asked Questions (FAQs)
1. What is the difference between an IGBT and a MOSFET?
While both are voltage-controlled devices, IGBTs handle significantly higher currents and voltages than MOSFETs due to their hybrid structure incorporating a BJT output stage. This makes IGBTs more suitable for high-power applications.
2. What are the key advantages of using IGBTs in motor drives?
IGBTs offer precise control over motor speed and torque, high efficiency, and robust performance, making them ideal for demanding motor drive applications. Their fast switching speeds also contribute to reduced noise and vibration.
3. How can I extend the lifespan of IGBT diodes in my application?
Ensuring proper cooling, avoiding overvoltage and overcurrent conditions, and implementing appropriate protection circuits are crucial for maximizing the lifespan of IGBT diodes. Regular maintenance and inspection can also help identify potential issues before they lead to failure.
