Maximizing Protection: The Art of Paralleling TVS Diodes
Lgesemi:
The complexities of paralleling TVS (Transient Voltage Suppressor) diodes to improve electronic circuit protection are examined in this guide. It explores the technical facets of paralleling, covering its advantages, difficulties, and best practices for creating strong security systems. Discover how paralleling TVS diodes affects clamping voltage, current handling, and overall system reliability to maximize the performance of your circuits.

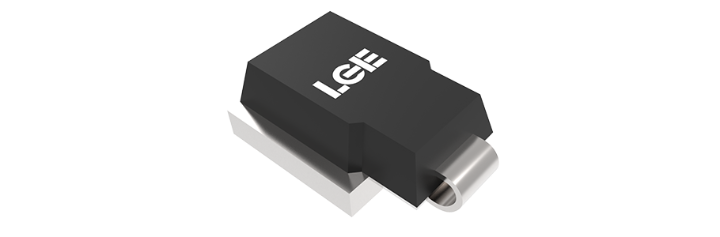

Introduction to TVS Diodes
Transient Voltage Suppression (TVS) diodes are critical components in modern electronics, designed to protect circuits from voltage spikes caused by transient events like electrostatic discharge (ESD), lightning strikes, or inductive switching. The demand for more robust protection in high-power and high-reliability applications has led to the practice of paralleling TVS diodes to enhance their performance.
This comprehensive guide explores the principles, benefits, and design considerations of paralleling TVS diodes for maximum circuit protection.
Understanding Transient Voltage Suppressors
Basic Operation and Applications of TVS Diodes
TVS diodes operate by clamping voltage spikes and redirecting excess energy away from sensitive components. They act as a safeguard against damage to microprocessors, communication lines, and power systems.
Key applications include:
- Consumer Electronics: Protecting smartphones, laptops, and USB interfaces.
- Industrial Systems: Safeguarding control systems and sensors from surges.
- Automotive Electronics: Shielding ECUs and powertrain systems.
Benefits of Paralleling TVS Diodes
Paralleling TVS diodes involves connecting two or more diodes in parallel to achieve enhanced performance metrics.
1. Increased Current Handling Capacity
By paralleling TVS diodes, the circuit can sustain higher transient currents. Each diode shares the current load, reducing the risk of individual diode failure during high-energy surges.
Example: A single diode rated for 1 kA can be paralleled with another identical diode to handle up to 2 kA (assuming ideal current sharing).
2. Improved Clamping Voltage Consistency
Clamping voltage is the maximum voltage the TVS diode allows during a transient event. Paralleling diodes with well-matched characteristics ensures more stable and consistent clamping voltage across the circuit.
Advantage: Reduces the stress on downstream components by maintaining voltage within safe limits.
3. Enhanced System Protection and Reliability
Paralleling provides redundancy, ensuring that if one diode fails, the others continue to protect the circuit. This redundancy is particularly valuable in critical applications like medical devices or aerospace systems.
Outcome: Increased mean time between failures (MTBF) and overall system reliability.
Technical Considerations for Paralleling
1. Matching TVS Diodes for Parallel Operation
To ensure effective operation, TVS diodes in parallel must have closely matched electrical parameters, including:
- Breakdown Voltage (VBR): Variations can lead to unequal current sharing.
- Clamping Voltage (VCLAMP): Ensures consistent voltage protection.
- Dynamic Resistance (RDYN): Affects how current is distributed during transients.
2. Impact on Clamping Voltage and Capacitance
- Clamping Voltage: Variations in clamping voltage due to mismatched diodes can reduce protection efficiency.
- Capacitance: Paralleling increases overall capacitance, which may affect high-speed signal integrity.
Mitigation Strategy: Use low-capacitance diodes for high-speed applications.
3. Thermal and Dynamic Resistance Considerations
- Thermal Effects: Diodes generate heat during transient events. Uneven heat distribution can cause thermal runaway, where one diode absorbs most of the current and fails prematurely.
- Dynamic Resistance: Lower RDYN ensures better current sharing and improved clamping performance.
Solution: Use thermally balanced designs and select diodes with minimal resistance variation.
Design Guidelines and Best Practices
1. Selecting TVS Diodes for Parallel Configurations
Choose diodes with the following characteristics:
- Matching electrical specifications (VBR, VCLAMP, RDYN).
- Adequate power handling capabilities for the intended application.
- Low leakage current to minimize power loss in standby mode.
2. Circuit Design Techniques for Effective Paralleling
- Equalizing Resistors: Add small resistors in series with each diode to improve current sharing.
- Symmetrical Layout: Ensure symmetrical PCB traces to reduce parasitic inductance and resistance.
Example Circuit: A power supply surge protection design with two TVS diodes in parallel, featuring equalizing resistors and optimized layout.
3. Ensuring Proper Heat Dissipation and PCB Layout
- Thermal Management: Use heat sinks or thermal vias to dissipate heat effectively.
- PCB Design: Optimize trace width and spacing to minimize inductive effects and enhance reliability.
Tip: Simulate thermal performance under worst-case transient conditions to validate design robustness.
Applications of Paralleled TVS Diodes
1. High-Power and High-Reliability Applications
In high-power systems, such as industrial power grids or renewable energy converters, paralleled TVS diodes manage high-energy surges efficiently.
2. Automotive and Industrial Electronics Protection
- Automotive: Protecting advanced driver-assistance systems (ADAS) and infotainment units from voltage spikes.
- Industrial: Shielding factory automation equipment and motor drives.
3. Surge Protection in Power Supplies and Signal Lines
Paralleled TVS diodes are ideal for protecting sensitive communication lines and high-power DC bus systems, ensuring uninterrupted operation during transient events.
Conclusion: The Strategic Role of Paralleled TVS Diodes
The Importance of Paralleling in Advanced Circuit Protection
Paralleling TVS diodes provides a practical solution to enhance current handling, clamping voltage stability, and overall system reliability. It’s a critical technique in designing robust electronic systems capable of withstanding the harshest transient conditions.
The Continuous Evolution of TVS Diode Applications
With advancements in materials and manufacturing, TVS diodes are becoming more capable, enabling their integration into emerging technologies like electric vehicles, 5G communication systems, and renewable energy infrastructures.
