A common technique in applications that need protection beyond what a single diode can provide, this guide examines the idea of connecting TVS (Transient Voltage Suppressor) diodes in series to achieve higher stand-off voltages. The impact on clamping voltage and the choice of suitable diodes to guarantee efficient voltage suppression without sacrificing circuit integrity are among the technical issues, advantages, and difficulties related to series connections that are covered.
Introduction to TVS Diodes in Series

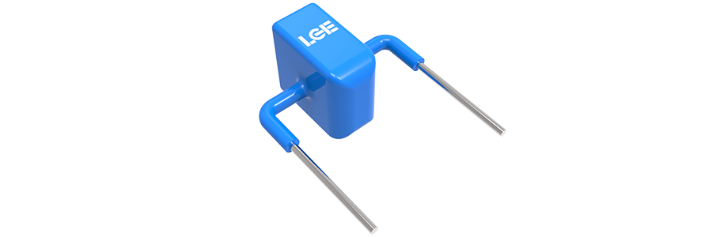

Transient Voltage Suppressor (TVS) diodes are essential components in modern electronics, safeguarding sensitive circuitry from damaging voltage surges. While a single TVS diode can provide adequate protection in many applications, connecting them in series unlocks a new level of defense against high-voltage transients, extending their protective capabilities to a wider range of applications. This article delves into the intricacies of series TVS diode configurations, exploring the underlying principles, benefits, challenges, and best practices for successful implementation.
Understanding the Basics of Series Connection
Connecting TVS diodes in series involves placing two or more diodes end-to-end, effectively summing their individual breakdown voltages. This configuration allows engineers to achieve a higher stand-off voltage than is possible with a single diode, enabling protection against significantly larger transients. The fundamental principle is additive; if two identical TVS diodes with a stand-off voltage of 10V are connected in series, the resulting configuration will have a stand-off voltage of 20V. This simple yet powerful technique opens doors to protecting circuits operating at higher voltages.
Technical Considerations for Series TVS Diodes
Implementing series TVS diode configurations requires careful consideration of several technical factors. Simply connecting diodes without understanding the nuances can lead to unbalanced voltage distribution and compromised protection. Key considerations include diode matching, leakage current, and temperature coefficients.
Stand-off Voltage and Its Importance in Series Configurations
The stand-off voltage (V<sub>BR</sub>) is a critical parameter in TVS diode selection, representing the voltage below which the diode remains non-conductive. In series configurations, the total stand-off voltage is the sum of the individual diodes' V<sub>BR</sub>. Accurate selection of V<sub>BR</sub> is crucial to ensure the diodes clamp effectively at the desired voltage, preventing damage to downstream components. Overestimating V<sub>BR</sub> can lead to inadequate protection, while underestimating it can result in premature clamping and unnecessary power dissipation.
Benefits of Series Connection: Enhanced Protection for High-Voltage Applications
The primary advantage of connecting TVS diodes in series is the ability to achieve higher stand-off voltages, extending protection to high-voltage applications where single diodes are insufficient. This approach offers a cost-effective and space-saving alternative to using specialized high-voltage TVS diodes, especially in applications with limited board space.
Challenges and Solutions: Balancing Voltage Distribution and Diode Selection
One of the primary challenges in series TVS diode configurations is ensuring balanced voltage distribution across each diode. Variations in leakage current and capacitance can lead to uneven voltage sharing, potentially overstressing individual diodes and compromising the overall protection scheme. Solutions include using closely matched diodes with tight tolerances and incorporating balancing resistors in parallel with each diode to equalize voltage distribution.
Applications Requiring Series Connection: Outdoor LED Lighting and Telecom DC/DC Protection
Series TVS diode configurations find application in various fields, particularly where high-voltage transients are prevalent. Outdoor LED lighting systems, exposed to lightning-induced surges, often utilize series TVS diodes to protect sensitive driver circuitry. Telecom DC/DC converters also benefit from this configuration, safeguarding against voltage spikes on power lines. Other applications include automotive electronics, industrial control systems, and power supplies.
Design Best Practices: Circuit Design Techniques for Effective Series Connection
Effective implementation of series TVS diode configurations requires adherence to specific design best practices. These include careful selection of diodes with matching characteristics, incorporating balancing resistors for even voltage distribution, and considering the thermal implications of power dissipation. Proper PCB layout is also crucial to minimize parasitic inductance and capacitance, which can affect the performance of the protection circuit.
Conclusion: The Strategic Use of TVS Diodes in Series – Maximizing Protection in High-Voltage and Critical Applications
Connecting TVS diodes in series offers a powerful and versatile approach to enhancing circuit protection against high-voltage transients. By understanding the underlying principles, addressing the challenges, and adhering to best practices, engineers can leverage this technique to safeguard sensitive electronics in a wide range of demanding applications. The strategic use of series TVS diodes ensures robust and reliable protection, maximizing the lifespan and performance of critical systems.
Frequently Asked Questions about TVS Diodes in Series
1. How do I determine the appropriate balancing resistor value for series-connected TVS diodes?
The balancing resistor value depends on the leakage current characteristics of the specific TVS diodes used. Consult the manufacturer's datasheet for the leakage current (I<sub>R</sub>) at the working voltage. A general guideline is to choose a resistor value that allows a current approximately 10 times I<sub>R</sub> to flow through the resistor. This ensures adequate voltage equalization without excessive power dissipation.
2. What are the potential consequences of not using balancing resistors in a series TVS diode configuration?
Without balancing resistors, variations in leakage current between diodes can lead to uneven voltage distribution. This can result in one diode experiencing a significantly higher voltage stress than others, potentially leading to premature failure and compromising the overall protection scheme.
3. Can I connect different types of TVS diodes in series?
While technically possible, it is generally not recommended to connect different types of TVS diodes in series. Different diodes may have significantly different characteristics, including leakage current, capacitance, and clamping voltage, which can lead to unpredictable performance and potentially damage the diodes or the protected circuit. It is best practice to use identical diodes from the same manufacturer and batch for optimal performance and reliability.
