The Shield of Electronics: Unveiling the TVS Protection Diode

The Shield of Electronics: Unveiling the TVS Protection Diode

     Lgesemi:          This guide explores how important TVS (Transient Voltage Suppression) protection diodes are for protecting electronic circuits against transient events and voltage spikes. Learn about the fundamentals, important factors to take into account when choosing a TVS diode, and their numerous uses in industrial control systems, consumer electronics, automobiles, and telecommunications. Discover how these tiny but effective parts guarantee the dependability and durability of electronic systems under electrical stress.

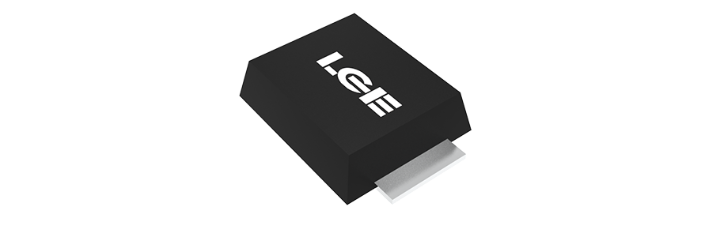

Introduction to TVS Protection Diodes

Transient Voltage Suppression (TVS) diodes are essential components in safeguarding electronic circuits from voltage spikes and surges. Designed to clamp and divert excessive energy away from sensitive components, these diodes play a critical role in ensuring the reliability and longevity of modern electronic systems. From consumer electronics to industrial control systems, TVS protection diodes are indispensable in mitigating transient voltage events.

Understanding Transient Voltage Suppression

Transient voltage refers to short-duration voltage spikes caused by phenomena like lightning strikes, electrostatic discharge (ESD), or inductive load switching. Without protection, these surges can cause:

• Component Damage: Overvoltage can destroy ICs, sensors, and other delicate components.
• System Downtime: Unprotected circuits may fail, leading to costly repairs and interruptions.
• Data Loss: Sensitive data lines can experience signal corruption during transient events.

TVS diodes provide a fast and effective solution to these issues by clamping transient voltages and redirecting excess energy to ground.

Working Principles of TVS Diodes

How TVS Diodes Respond to Voltage Spikes

TVS diodes operate in two main states:

1. Normal State: Under normal conditions, the diode remains non-conductive, allowing the circuit to function without interference.
2. Clamping State: When a transient voltage exceeds the diode's breakdown voltage, it becomes conductive, diverting the excess current away from sensitive components.

This rapid transition ensures minimal impact on circuit performance while providing robust protection.

The Role of Silicon Carbide (SiC) Technology in TVS Diodes

Silicon Carbide (SiC) technology has revolutionized the design of TVS diodes, offering:

• Higher Voltage Ratings: Ideal for high-power applications.
• Enhanced Thermal Stability: Performs reliably in extreme temperatures.
• Faster Response Times: Ensures quicker clamping during transient events.

SiC-based TVS diodes are particularly beneficial in automotive and industrial systems where reliability is paramount.

Key Parameters for TVS Diode Selection

1. Peak Pulse Power (Ppp)

• Represents the maximum power the diode can absorb during a transient event.
• Higher Ppp ratings indicate better handling of high-energy surges.

2. Working Voltage (Vwm)

• The maximum voltage the diode can withstand without conducting.
• Must align with the circuit's normal operating voltage to avoid unnecessary activation.

3. Clamping Voltage (Vc)

• The voltage level maintained by the diode during a transient event.
• Lower Vc values provide better protection by minimizing the stress on downstream components.

4. Breakdown Voltage (Vbr)

• The voltage threshold at which the diode begins to conduct.
• Should be slightly above the circuit’s operating voltage for effective protection.

Applications of TVS Diodes

1. Consumer Electronics

TVS diodes protect devices like smartphones, laptops, and gaming consoles from voltage surges during power fluctuations or ESD events. They are crucial in safeguarding USB ports, HDMI connections, and charging circuits.

2. Automotive Electronics

In vehicles, TVS diodes ensure the reliability of systems like:

• Engine Control Units (ECUs): Protecting against voltage spikes from alternators or inductive loads.
• ADAS (Advanced Driver Assistance Systems): Maintaining the integrity of safety-critical electronics.

3. Telecommunications Equipment

TVS diodes shield communication lines, including Ethernet, coaxial, and fiber optic systems, from transient surges caused by lightning strikes or switching events.

4. Industrial Control Systems

In industrial environments, TVS diodes protect factory automation equipment, motor controllers, and sensor networks from high-energy transients.

Testing and Qualification

Ensuring Compliance with Industry Standards

TVS diodes must meet stringent industry standards for performance and reliability, including:

• IEC 61000-4-2: Specifies ESD immunity requirements.
• ISO 7637: Defines transient immunity standards for automotive applications.
• UL Certification: Ensures safety and quality compliance.

TVS Diode Testing Methods and Qualification

1. Pulse Testing: Verifies the diode’s ability to handle transient currents.
2. Clamping Voltage Measurement: Assesses the diode’s efficiency during surge events.
3. Thermal Testing: Evaluates the diode’s performance under varying temperature conditions.

Comprehensive testing ensures that TVS diodes perform reliably under real-world conditions.

Conclusion: The Essential Role of TVS Diodes

Protecting Electronic Systems from Transient Voltage Events

TVS diodes are vital for maintaining the reliability and safety of modern electronic systems. By offering fast, efficient protection against transient voltages, they shield devices from costly damage and ensure uninterrupted performance.

As technology evolves, the demand for advanced TVS diodes will continue to grow. Innovations in materials like SiC and GaN, coupled with enhanced testing methodologies, are shaping the future of transient protection. TVS diodes remain a cornerstone of robust circuit design, essential for protecting systems in an increasingly digital world.

FAQs

1. What is the primary function of a TVS protection diode?

A TVS protection diode safeguards electronic circuits from transient voltage events by clamping excessive voltage and redirecting surge currents to ground. It ensures that sensitive components remain protected from overvoltage conditions caused by ESD, lightning strikes, or inductive switching.

2. How does Silicon Carbide (SiC) enhance the performance of TVS diodes?

Silicon Carbide (SiC) improves TVS diodes by providing:

• Higher Voltage Handling: Ideal for high-power applications.
• Better Thermal Stability: Operates efficiently in extreme temperatures.
• Faster Response: Ensures quicker clamping during transient events, offering superior protection in critical systems.

3. How do I select the right TVS diode for my application?

To select the appropriate TVS diode:

• Match Working Voltage (Vwm): Align it with the circuit’s operating voltage.
• Check Clamping Voltage (Vc): Ensure it is below the maximum voltage tolerance of protected components.
• Verify Peak Pulse Power (Ppp): Choose a diode capable of handling the expected surge energy.
• Consider Capacitance: Opt for low-capacitance diodes in high-speed signal applications to avoid signal distortion.
