Understanding the Different Types of Power Diodes

Introduction to Power Diodes

Definition and Scope

Power diodes are semiconductor devices designed to handle high currents and voltages, making them essential in power electronic systems. Unlike signal diodes used in low-power applications, power diodes are built to manage significant electrical loads, ensuring efficient and reliable operation. Their primary function is to allow current to flow in one direction while blocking it in the opposite direction, thus facilitating the conversion and control of electrical power.

Role in Power Electronics

In power electronics, diodes serve several critical functions:

• Rectification: Converting alternating current (AC) to direct current (DC).
• Clamping: Protecting circuits from voltage spikes.
• Protection: Safeguarding components from overvoltage conditions.
• Freewheeling: Providing a path for inductive kickback currents.
• Snubber: Damping oscillations and reducing voltage spikes.

Basic Operational Principles

A diode consists of a p-n junction where p-type and n-type semiconductors meet. When forward-biased, current flows easily through the junction; when reverse-biased, the diode blocks current flow. The voltage drop across a conducting diode is typically around 0.7V for silicon diodes, although this can vary based on the diode type and material.

Classification of Power Diodes

Power diodes can be classified based on various criteria, including material, structure, and function. Each classification offers unique properties and advantages suited for specific applications.

Types Based on Material (Silicon, Silicon Carbide)

Silicon Diodes

Silicon is the most common material for power diodes due to its abundance and cost-effectiveness. Silicon diodes are widely used in standard rectification and protection applications, offering reliable performance at moderate voltage and current levels.

Silicon Carbide Diodes

Silicon carbide (SiC) diodes have gained popularity due to their superior material properties. SiC diodes offer higher breakdown voltages, faster switching speeds, and better thermal conductivity compared to silicon diodes. These attributes make SiC diodes ideal for high-frequency and high-power applications, such as in electric vehicles and renewable energy systems.

Types Based on Structure (PN Junction, Schottky, PIN)

PN Junction Diodes

The simplest form of diode, consisting of a p-type and an n-type semiconductor region. PN junction diodes are commonly used in rectification applications due to their straightforward design and reliability.

Schottky Diodes

Schottky diodes feature a metal-semiconductor junction instead of a p-n junction. This structure results in a lower forward voltage drop and faster switching speeds compared to PN junction diodes. Schottky diodes are often used in high-frequency applications and power supplies where efficiency is crucial.

PIN Diodes

PIN diodes have an additional intrinsic (I) layer between the p-type and n-type regions. This structure enhances their ability to handle high currents and reverse voltages, making them suitable for applications requiring robust performance under demanding conditions.

Types Based on Function (Rectifier, Zener, TVS, etc.)

Rectifier Diodes

Designed specifically for converting AC to DC, rectifier diodes are essential in power supply circuits. They ensure that the output current flows in a single direction, maintaining a stable DC voltage.

Zener Diodes

Zener diodes are used for voltage regulation. When reverse-biased above a certain voltage (the Zener voltage), they maintain a constant voltage regardless of changes in current or temperature. Zener diodes are commonly employed in voltage reference circuits and shunt regulators.

Transient Voltage Suppressor (TVS) Diodes

TVS diodes protect circuits from transient voltage spikes by clamping excessive voltages to safe levels. They are crucial in safeguarding sensitive electronic components from lightning strikes, electrostatic discharge (ESD), and other voltage transients.

PN Junction Power Diodes

Standard Rectifier Diodes

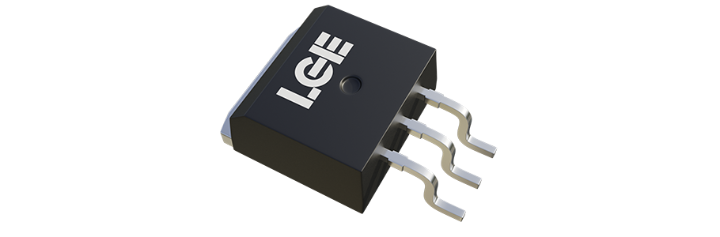

Standard rectifier diodes are the workhorses of power electronics, used extensively for converting AC to DC. They come in various packages, including through-hole and surface-mount configurations, catering to different application needs. These diodes are characterized by their robustness and reliability, making them suitable for a wide range of industrial and consumer electronics.

Fast Recovery Diodes (FRDs)

Fast recovery diodes are designed to minimize reverse recovery time, the period during which the diode remains conductive after being switched off. FRDs are crucial in high-frequency applications where rapid switching is required, such as in switch-mode power supplies (SMPS) and motor drives. Their ability to quickly stop conducting reduces switching losses and improves overall system efficiency.

Ultra-Fast Recovery Diodes (UFRDs)

Ultra-fast recovery diodes further reduce reverse recovery time compared to FRDs, enabling even faster switching speeds. UFRDs are used in cutting-edge applications like high-frequency inverters and advanced communication systems where minimizing power losses is paramount. Their superior performance comes at a higher cost but offers significant benefits in terms of efficiency and thermal management.

High-Voltage Rectifier Diodes

High-voltage rectifier diodes are specialized for applications requiring substantial voltage handling capabilities, such as in power transmission and distribution systems. These diodes are designed to withstand high reverse voltages without breaking down, ensuring reliable operation in demanding environments. They are typically used in off-grid solar inverters, high-voltage DC (HVDC) systems, and industrial machinery.

Schottky Power Diodes

Operational Principles and Advantages

Schottky diodes operate based on the principle of a metal-semiconductor junction, which creates a potential barrier that allows electrons to flow more freely compared to a p-n junction. This results in a lower forward voltage drop (typically around 0.3V) and faster switching speeds. The reduced voltage drop translates to lower power losses during conduction, enhancing overall system efficiency. Additionally, Schottky diodes exhibit minimal reverse leakage current, making them suitable for low-power applications where energy conservation is critical.

Low Forward Voltage Drop

One of the standout features of Schottky diodes is their low forward voltage drop. This characteristic is particularly advantageous in applications where power efficiency is a priority, such as in battery-powered devices and energy-efficient power supplies. By reducing the voltage drop across the diode, less energy is dissipated as heat, leading to improved thermal performance and extended component lifespan.

Reverse Recovery Characteristics

Unlike traditional p-n junction diodes, Schottky diodes do not store charge carriers when conducting. As a result, they exhibit negligible reverse recovery time, allowing for nearly instantaneous transition from the conducting to non-conducting state. This property makes Schottky diodes ideal for high-frequency switching applications, where fast recovery times are essential to minimize switching losses and maintain high efficiency.

Applications in High-Frequency Circuits

Due to their low forward voltage drop and rapid switching capabilities, Schottky diodes are widely used in high-frequency circuits. These include radio frequency (RF) amplifiers, microwave transmitters, and digital communication systems. In these applications, Schottky diodes help achieve higher data rates and improved signal integrity by reducing parasitic effects and power dissipation.

Zener and Avalanche Diodes

Voltage Regulation Capabilities

Zener diodes are designed to maintain a stable voltage across their terminals when reverse-biased beyond a specified breakdown voltage, known as the Zener voltage. This property enables them to regulate voltage effectively in power supplies and reference circuits. Avalanche diodes also provide voltage regulation but operate at higher voltages and currents. Both types of diodes dissipate excess voltage as heat, stabilizing the output voltage despite variations in input voltage or load conditions.

Zener Breakdown vs. Avalanche Breakdown

While both Zener and avalanche diodes regulate voltage by exploiting the breakdown phenomenon, they differ in their mechanisms. Zener breakdown occurs at low voltages due to the quantum mechanical effect, resulting in a sharp increase in current with minimal change in voltage. Avalanche breakdown, on the other hand, involves the multiplication of charge carriers at higher voltages, leading to a more gradual increase in current with increasing voltage. This difference affects their respective applications and performance characteristics.

Power Dissipation Considerations

When using Zener or avalanche diodes for voltage regulation, it is crucial to consider power dissipation. Since these diodes dissipate excess voltage as heat, proper heat sinking or thermal management strategies must be employed to prevent overheating and ensure reliable operation. Additionally, selecting the appropriate breakdown voltage and maximum current rating is essential to match the specific requirements of the application.

Transient Voltage Suppressor (TVS) Diodes

Protection Against Voltage Transients

TVS diodes are designed to safeguard electronic circuits from transient voltage spikes caused by events like lightning strikes, electrostatic discharge (ESD), or switching transients. These spikes can damage sensitive components if not properly mitigated. TVS diodes act as fast-acting clamps that divert excessive voltage away from protected devices, maintaining a safe operating environment.

Types (Unidirectional, Bidirectional)

TVS diodes come in two main types: unidirectional and bidirectional. Unidirectional TVS diodes conduct current in only one direction, similar to a conventional diode, making them suitable for DC applications where the polarity of the voltage is constant. Bidirectional TVS diodes can conduct current in both directions, providing protection against transients in AC circuits or situations where the polarity may vary. The choice between unidirectional and bidirectional TVS diodes depends on the specific application requirements and the nature of the transient threat.

Applications in Surge Protection

TVS diodes are indispensable in surge protection schemes for various electronic devices and systems. They are commonly used in consumer electronics, telecommunication equipment, automotive electronics, and industrial control systems. By clamping transient voltages to safe levels, TVS diodes help prevent damage to semiconductor components, ensuring the longevity and reliability of the protected equipment.

Applications of Power Diodes

Power Supplies

Power diodes play a vital role in power supplies by converting AC to DC and regulating voltage levels. Rectifier diodes are used in bridge rectifiers to convert household AC into usable DC for charging batteries and powering electronic devices. Voltage regulators incorporating Zener or avalanche diodes ensure stable output voltages despite fluctuations in input voltage or load conditions. These components work together to provide clean, reliable power to a wide range of applications, from personal electronics to industrial machinery.

Clamping Circuits

Clamping circuits utilize diodes to limit the voltage across sensitive components, protecting them from overvoltage conditions. For instance, in a circuit with an inductive load like a relay coil or transformer, a flyback diode is used to safely dissipate the stored magnetic energy when the switch is turned off. Similarly, TVS diodes are employed in parallel with vulnerable components to clamp transient voltage spikes, preventing damage from ESD or other transient events. These protective measures are crucial for maintaining the integrity and functionality of electronic circuits in diverse environments.

Freewheeling and Snubber Circuits

Freewheeling circuits, which often incorporate diodes like Schottky or ultrafast recovery types, are used in switch-mode power supplies (SMPS) and motor drivers to manage the release of stored energy when the switch is turned off. These diodes provide a path for the current to continue flowing until the magnetic field collapses, thereby reducing voltage spikes and electromagnetic interference (EMI). Snubber circuits, comprising resistors and capacitors along with diodes, dampen oscillations and minimize ringing effects, further enhancing the stability and efficiency of power electronic systems.

Switching Applications

Switching applications involve rapidly turning electronic components on and off to control power flow or signal processing. Diodes such as Schottky and fast recovery types are integral to these processes due to their low forward voltage drops and quick response times. In high-frequency switching converters like DC-DC converters or AC-DC inverters, these diodes enable efficient energy transfer with minimal losses, contributing to compact designs and enhanced performance. Their ability to handle high currents and fast switching speeds makes them indispensable in modern power electronics technology.

High-Frequency Applications

In high-frequency applications such as RF communication systems, radar equipment, and microwave ovens, diodes with exceptionally fast switching characteristics are required. Ultrafast recovery diodes and specialized Schottky variants find extensive use here, providing near-instantaneous turn-on and turn-off capabilities that minimize signal distortion and maximize data throughput. These high-performance diodes are also crucial in millimeter-wave technology for 5G networks, where they support the generation and detection of extremely high-frequency signals with precision and efficiency.

Microwave and RF Circuits

Microwave and radio frequency (RF) circuits demand components capable of operating at very high frequencies with minimal loss and distortion. Diodes such as Schottky barrier diodes and Gunnel’s oscillators are commonly employed in these circuits for functions like amplitude modulation, frequency mixing, and signal amplification. Their unique properties allow them to efficiently handle the rapid oscillations inherent in microwave signals, enabling advanced communication technologies, satellite communications, and radar sensors to function effectively.

Automotive Applications

In the automotive industry, power diodes are essential for managing electrical energy within vehicles. They are used in alternators for converting mechanical energy into DC power, in battery management systems for charging and discharging lithium-ion batteries safely, and in power distribution modules for efficiently distributing electricity throughout the vehicle's electrical system. Additionally, diodes play a critical role in regenerative braking systems, where they facilitate the conversion of kinetic energy back into electrical energy stored in the battery, contributing to fuel efficiency and reduced emissions.

Industrial Control Systems

Industrial control systems rely on precise control of electrical parameters to ensure smooth operation of machinery and processes. Diodes are utilized here for tasks such as signal conditioning, level shifting, and overvoltage protection. In programmable logic controllers (PLCs), for example, Zener diodes stabilize internal voltage references, while Schottky diodes isolate digital inputs/outputs from external disturbances. These applications help maintain process stability, enhance equipment reliability, and enable automation in manufacturing environments.

Solar Energy Conversion

Solar panels convert sunlight into electricity using photovoltaic cells, which generate DC current when exposed to light. Power diodes, especially those optimized for low forward voltage drop and high efficiency, are crucial in solar inverters that convert this DC into grid-compatible AC power. By minimizing power losses during conversion, these diodes contribute to maximizing the overall energy yield of solar installations, supporting sustainable energy production and environmental conservation efforts.

Lighting Ballasts

Lighting ballasts regulate the current through fluorescent or LED lamps to provide stable illumination. Diodes within these ballasts perform critical functions such as rectifying AC input to DC for LED drivers or providing smooth start-up characteristics for fluorescent lamps. They also help protect against voltage spikes that could damage sensitive lighting components, ensuring consistent brightness and longevity of the lighting system.

Medical Equipment

Medical equipment often requires precise voltage regulation and protection against electrical noise for safe operation. Power diodes are used in medical imaging devices like X-ray machines and MRI scanners to condition power supplies and ensure stable performance. They also play a role in patient monitoring systems by isolating physiological signals from electrical interference, ensuring accurate diagnostics and treatment outcomes. Moreover, diodes are integral to portable medical devices such as pacemakers and insulin pumps, where they help manage power efficiently and safely within the constraints of small form factors.

Telecommunication Networks

Telecommunication networks depend heavily on power diodes for signal processing and protection. In base stations, transistors switch high-frequency signals for transmission over long distances, with diodes ensuring efficient energy transfer and minimal signal loss. At the customer premises equipment (CPE) level, TVS diodes protect sensitive communication ports from voltage transients caused by lightning strikes or faulty wiring. Optical fiber communication links also benefit from diode-based protection schemes that safeguard transmitter and receiver modules from electrical surges propagating through the network infrastructure.

Aerospace Technologies

Aerospace applications demand components capable of withstanding extreme conditions while delivering reliable performance. Power diodes used in satellite power systems must endure radiation exposure, temperature variations, and mechanical stresses without compromising functionality. They play a crucial role in converting solar energy harvested by spacecraft into usable electrical power and regulating battery charging cycles. On Earth, ground support equipment for aircraft maintenance and testing also relies on robust diode technology to interface safely with avionics systems during diagnostic procedures or repairs.

Other Advanced Applications

Beyond traditional domains, power diodes are finding innovative uses in emerging fields such as quantum computing, where they assist in biasing superconducting qubits; wireless charging pads for electric vehicles; smart grid technologies for efficient energy distribution; and biomedical implants like neurostimulators or cardiac pacemakers. Their versatility stems from continuous advancements in materials science and fabrication techniques that push the boundaries of what these humble yet powerful components can achieve.

Key Considerations in Selecting Diodes for Power Applications

When choosing diodes for power applications, several key factors must be taken into account to ensure optimal performance and reliability:

1. Voltage Rating: The diode must have a sufficient reverse voltage rating to withstand the maximum voltage it will encounter in the circuit without breaking down. This is particularly important in high-voltage applications such as power supplies or motor drives. Exceeding the voltage rating can lead to diode failure and potential damage to other circuit components.
2. Current Rating: The diode should be able to handle the expected forward current without overheating or suffering from excessive power dissipation. In high-current applications like battery chargers or DC-DC converters, selecting a diode with an adequate current rating ensures efficient operation and prolongs the lifespan of the device.
3. Reverse Leakage Current: Even when reverse-biased, diodes exhibit a small amount of leakage current. While this is generally negligible for many applications, low reverse leakage current is desirable in precision analog circuits or high-impedance digital inputs to maintain signal integrity and accuracy.
4. Forward Voltage Drop: The voltage drop across the diode when conducting forward current impacts power efficiency directly. Low forward voltage drop minimizes power loss, which is crucial in battery-powered devices or energy-efficient designs. Schottky diodes are often preferred in such cases due to their inherently low forward voltage drop compared to silicon diodes.
5. Switching Speed: For high-frequency switching applications, the diode's ability to transition rapidly between conducting and non-conducting states is critical. Fast recovery diodes or Schottky diodes are typically chosen for their quick response times, reducing switching losses and improving overall system efficiency.
6. Thermal Stability: The diode's performance characteristics should remain stable over a wide temperature range. This is especially important in environments with varying temperatures or where self-heating occurs during operation. Thermally stable diodes ensure consistent behavior under different operating conditions.
7. Package Type: The physical package of the diode can influence its thermal dissipation capabilities and ease of integration into a circuit board. Smaller packages like SMD (Surface Mount Device) are suitable for space-constensive applications but may have limited power handling capabilities compared to larger through-hole packages.
8. Cost: While considering all technical specifications, cost-effectiveness is also a crucial factor. Balancing performance requirements with budget constraints often leads to trade-offs that need careful evaluation based on the specific application needs and available options in the market.

Common Issues Faced During Diode Integration and How to Overcome Them

When integrating power diodes into electronic circuits, designers often encounter several challenges that can affect performance and reliability if not addressed properly:

1. Heat Dissipation: Power diodes dissipate heat during operation, which can lead to thermal runaway if not managed correctly. To overcome this issue, use appropriate heat sinking techniques such as attaching thermally conductive materials or incorporating cooling fans/heat exchangers depending on the power level involved. Ensure adequate airflow around the diode and avoid placing it in confined spaces where heat cannot escape easily.
2. Voltage Spikes: Rapid changes in current can cause voltage spikes across the diode, potentially damaging it or interfering with nearby components. Use snubber circuits consisting of resistors and capacitors connected in parallel with the diode to dampen these spikes effectively. Additionally, selecting diodes with built-in protection features like transient voltage suppressors (TVS) can provide extra safety margin against unexpected voltage transients.
3. Reverse Leakage: Reverse leakage current increases with temperature rise and can degrade circuit performance over time. Choose diodes with low reverse leakage specifications at elevated temperatures or implement cooling solutions to maintain a stable operating environment for the diode. In critical applications, consider using cascaded stages of diodes to further reduce leakage current if necessary.
4. Capacitance Effects: Parasitic capacitance associated with diodes can affect high-frequency response by causing signal delays or distortions. Minimize these effects by selecting diodes with low capacitance values or by using matching networks to compensate for any phase shift introduced by the diode's inherent capacitance. For ultra-high-frequency applications, specialized high-speed diodes designed for minimal capacitance may be required.
5. Mechanical Stress: In some applications, especially those involving vibration or shock loads (like automotive or aerospace), mechanical stress on the diode can lead to microcracks or bond failures within its structure. Use ruggedized packaging options or mount the diode securely onto a rigid substrate to mitigate mechanical stresses. Additionally, consider applying conformal coatings for added protection against environmental factors that could exacerbate mechanical stress issues.
6. Long-Term Stability: Over time, repeated cycling of thermal and electrical stresses can degrade the diode's performance characteristics gradually. To ensure long-term stability, conduct thorough reliability testing under simulated operating conditions and choose components from reputable manufacturers known for their quality control standards. Implement periodic maintenance checks or replace aging parts before they reach end-of-life indicators to maintain consistent performance throughout the product's lifecycle.

Recapitulating the Key Points and Importance of Proper Diode Design Choices

In summary, understanding the key considerations when selecting diodes for power applications is crucial for optimizing circuit performance and ensuring reliability across various industries. From voltage ratings and current handling capabilities to thermal stability and cost-effectiveness, each aspect plays a vital role in determining the suitability of a particular diode type for a given application. By carefully evaluating these factors alongside common integration challenges such as heat dissipation, voltage spikes, reverse leakage currents, capacitance effects, mechanical stresses, and long-term stability concerns, engineers can make informed decisions that lead to efficient designs meeting stringent requirements while minimizing potential risks associated with improper component selection or usage patterns.
