What are High Power MOSFETs and Their Applications?

Introduction to High Power MOSFETs

Definition and Overview

High Power MOSFETs, or Metal-Oxide-Semiconductor Field-Effect Transistors, are essential components in modern electronic systems. These devices are designed to handle large currents and high voltages efficiently, making them indispensable in various applications ranging from automotive electronics to renewable energy systems. Unlike their low-power counterparts, high power MOSFETs can manage significant electrical loads while maintaining performance and reliability.

Importance in Modern Electronics

The significance of high power MOSFETs in contemporary electronics cannot be overstated. They serve as the backbone for many critical systems due to their ability to switch and amplify electronic signals with high efficiency. This capability is crucial for the operation of devices that require precise control over electrical power, such as electric vehicles, industrial machinery, and renewable energy installations. The demand for more efficient and reliable electronic components continues to drive advancements in MOSFET technology, ensuring their place at the forefront of electronic innovation.

Operational Principles

How High Power MOSFETs Work

High power MOSFETs operate on the principle of using an electric field to control the flow of current between the source and drain terminals. This is achieved through the application of a voltage to the gate terminal, which modulates the conductivity of a channel formed between the source and drain. When a sufficient voltage is applied to the gate, an inversion layer forms, allowing current to flow freely from the source to the drain. Conversely, when the gate voltage is removed or reduced below a certain threshold, the channel disappears, and the device enters a non-conducting state.

Gate, Source, and Drain Terminals

The gate, source, and drain are the three primary terminals of a MOSFET. The gate terminal acts as the control gate, regulating the flow of current between the source and drain. The source terminal is where the current enters the device, while the drain terminal is where the current exits. The proper functioning of these terminals is essential for the efficient operation of the MOSFET.

Conduction and Blocking States

A high power MOSFET can exist in one of two states: conduction or blocking. In the conduction state, the gate voltage is sufficient to create a conductive channel between the source and drain, allowing current to flow freely. In the blocking state, the gate voltage is insufficient to form a channel, and the device prevents current flow. Understanding these states is crucial for designing circuits that utilize MOSFETs effectively.

Key Characteristics

Voltage and Current Ratings

High power MOSFETs are characterized by their voltage and current ratings, which indicate the maximum voltage and current they can handle without failure. These ratings are critical parameters that determine the suitability of a MOSFET for a particular application. Exceeding these ratings can lead to device failure, so it is essential to select a MOSFET with appropriate ratings for the intended use case.

On-Resistance and Switching Speeds

On-resistance (Rds(on)) is another key characteristic of high power MOSFETs. It represents the resistance between the source and drain when the device is in the conduction state. Lower on-resistance values are desirable as they result in lower power losses and improved efficiency. Switching speeds, which include both turn-on and turn-off times, are also important. Faster switching speeds enable higher frequency operations, which can be beneficial in applications requiring rapid response times.

Thermal Management and Packaging

Efficient thermal management is crucial for high power MOSFETs, as they can generate significant heat during operation. Proper heat dissipation mechanisms, such as heat sinks or cooling systems, are often employed to maintain the device within safe temperature limits. Additionally, the packaging of MOSFETs plays a role in their thermal performance and reliability. Various packaging options, including discrete packages and integrated modules, are available to suit different application requirements.

Types of High Power MOSFETs

N-Channel and P-Channel MOSFETs

High power MOSFETs come in two main types: N-channel and P-channel. N-channel MOSFETs have electrons as the majority carriers and are generally more efficient than P-channel MOSFETs, which use holes as the majority carriers. As a result, N-channel MOSFETs are more commonly used in high-power applications due to their superior conductivity and lower on-resistance.

Enhancement and Depletion Modes

MOSFETs can also be classified based on their operating modes: enhancement mode and depletion mode. Enhancement mode MOSFETs are normally off and require a positive gate voltage to turn on, while depletion mode MOSFETs are normally on and require a negative gate voltage to turn off. Enhancement mode MOSFETs are more widely used due to their ease of control and compatibility with digital logic circuits.

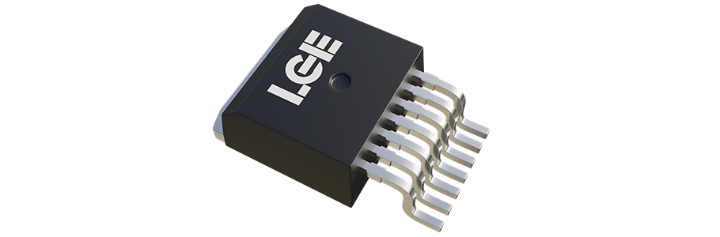

Discrete vs. Integrated Packages

High power MOSFETs can be found in either discrete packages or integrated modules. Discrete MOSFETs consist of individual components that must be assembled into a circuit, offering flexibility but requiring more design effort. Integrated modules, on the other hand, combine multiple MOSFETs and associated circuitry into a single package, simplifying the design process and improving reliability. The choice between discrete and integrated packages depends on the specific requirements of the application.

Applications

Automotive Electronics

High power MOSFETs play a vital role in automotive electronics, where they are used in various applications such as battery management systems, electric vehicle motors, and power converters. Their ability to handle high currents and voltages makes them ideal for these demanding environments, ensuring efficient and reliable operation.

Battery Management Systems

In battery management systems, high power MOSFETs are used to control the charging and discharging of batteries. They help regulate the flow of current, preventing overcharging or overdischarging, which can damage the battery and reduce its lifespan. By providing precise control over the battery's state of charge, MOSFETs contribute to the overall safety and performance of the system.

Electric Vehicle Motors

Electric vehicle motors rely on high power MOSFETs for efficient power conversion and control. These devices enable the smooth operation of the motor by switching the supply voltage and current at high frequencies, resulting in reduced noise and improved performance. The use of MOSFETs in electric vehicle motors helps increase their efficiency and extend their range.

Power Supplies and Converters

High power MOSFETs are integral components in power supplies and converters, where they convert electrical energy from one form to another. For example, DC-DC converters use MOSFETs to step up or step down voltage levels, while uninterruptible power supplies (UPS) use them to provide backup power during outages. The efficiency and reliability of these systems depend on the performance of the MOSFETs used.

DC-DC Converters

DC-DC converters are essential in many electronic devices, from smartphones to industrial equipment. High power MOSFETs in these converters enable efficient voltage regulation, ensuring stable operation even under varying load conditions. Their fast switching capabilities allow for compact designs with minimal energy loss.

Uninterruptible Power Supplies (UPS)

Uninterruptible power supplies (UPS) provide backup power during electrical outages, ensuring continuous operation of critical equipment. High power MOSFETs in UPS systems help achieve high efficiency and reliability by controlling the flow of current between the battery and the load. They also contribute to the compact size and lightweight design of modern UPS units.

Renewable Energy Systems

Renewable energy systems, such as solar inverters and wind turbine controllers, benefit greatly from the use of high power MOSFETs. These devices enable efficient conversion of renewable energy sources into usable electrical power, contributing to a more sustainable future. By optimizing the performance of these systems, MOSFETs help maximize energy harvest and reduce costs.

Conclusion

Recap of High Power MOSFET Importance

In conclusion, high power MOSFETs are indispensable components in modern electronic systems, offering unparalleled efficiency and reliability in handling large currents and voltages. Their versatile operational principles, key characteristics, and diverse types make them suitable for a wide range of applications, from automotive electronics to renewable energy systems. As technology continues to advance, the importance of high power MOSFETs will only grow, driving further innovation and improvement in electronic design.
