What Are Power Devices in Electronics and How Do They Function?

Introduction to Power Devices in Electronics

Definition and Overview

Power devices in electronics are specialized components designed to manage electrical power. Their primary functions include handling, controlling, and converting electrical energy efficiently. These devices are crucial for ensuring that electronic systems operate smoothly by regulating voltage and current levels, switching electrical signals, and protecting circuits from overloads.

Importance in Electronic Systems

The importance of power devices cannot be overstated. They form the backbone of modern electronic systems, enabling everything from simple household appliances to complex industrial machinery. Without efficient power management, these systems would suffer from poor performance, reduced reliability, and potential damage due to electrical faults. Power devices ensure stable operation, enhance energy efficiency, and extend the lifespan of electronic equipment.

Types of Power Devices

Discrete Semiconductor Devices (Diodes, Transistors)

Discrete semiconductor devices like diodes and transistors are fundamental building blocks in electronic circuits. Diodes allow current to flow in one direction only, making them essential for rectification and protection against reverse polarity. Transistors, on the other hand, can act as switches or amplifiers, controlling large currents with small input signals. They are used extensively in power regulation and signal processing applications.

Integrated Circuits (Power MOSFETs, IGBTs)

Integrated circuits such as Power MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and Insulated Gate Bipolar Transistors (IGBTs) combine multiple semiconductor devices into a single package. Power MOSFETs are known for their high switching speeds and efficiency, making them ideal for low to medium power applications. IGBTs, with their ability to handle higher voltages and currents, are commonly used in high-power applications like motor drives and power inverters.

Mechanical Devices (Relays, Contactors)

Mechanical power devices like relays and contactors use electromagnetic coils to open or close contacts, thereby controlling the flow of electrical power. Relays are typically used for low-power applications, while contactors are designed for higher power levels. These devices provide reliable switching capabilities but are limited by their slower operation speed compared to semiconductor devices.

Hybrid Devices (Thyristors, Triacs)

Hybrid power devices, including thyristors and triacs, combine the properties of semiconductor and mechanical devices. Thyristors are used for high-power switching applications, while triacs are used for AC power control. These devices offer robust performance and are often employed in light dimmers, motor speed controls, and heating elements.

Functional Principles

Current and Voltage Control Mechanisms

Power devices control current and voltage through various mechanisms. Semiconductor devices like transistors and MOSFETs use gate voltages to regulate the flow of current between the source and drain terminals. Mechanical devices like relays and contactors rely on physical movement of contacts to establish or break the electrical connection. Hybrid devices like thyristors use gate pulses to trigger conduction, providing precise control over power delivery.

Power Dissipation and Heat Management

Efficient power dissipation and heat management are critical for the longevity and reliability of power devices. Power losses in the form of heat must be minimized to prevent overheating, which can lead to device failure. Techniques such as heat sinks, cooling fans, and thermal interface materials are commonly employed to dissipate heat effectively. Advanced packaging technologies also help distribute heat more evenly across the device.

Switching Characteristics and Frequency Response

The switching characteristics of power devices, including rise and fall times, directly impact their efficiency and performance. Faster switching devices reduce energy losses during transitions, improving overall system efficiency. Frequency response is another important factor, especially in applications involving pulse-width modulation (PWM) or high-frequency converters. Devices with higher frequency response can handle rapid changes in load conditions without compromising performance.

Power Conversion Techniques

AC-DC Conversion (Rectification)

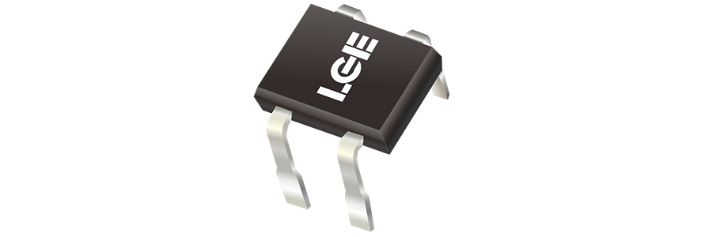

AC-DC conversion is the process of converting alternating current (AC) to direct current (DC). This is achieved using rectifiers, which can be composed of diodes, transistors, or integrated circuits like bridge rectifiers. The converted DC power is then smoothed using filters to remove any remaining AC components, providing a stable DC output suitable for electronic devices.

DC-DC Conversion (Buck, Boost, Buck-Boost)

DC-DC converters are used to step up or step down DC voltage levels. Buck converters reduce voltage, boost converters increase voltage, and buck-boost converters can do both. These converters use inductors, capacitors, and switching devices like transistors to efficiently convert one DC voltage level to another. They are widely used in battery-powered devices, power supplies, and renewable energy systems.

DC-AC Conversion (Inverters)

DC-AC inverters convert direct current (DC) back into alternating current (AC). This process is essential for applications like uninterruptible power supplies (UPS), solar inverters, and electric vehicle charging stations. Inverters use semiconductor devices like IGBTs or MOSFETs to create an AC output that matches the desired voltage and frequency specifications.

AC-AC Conversion (Transformers)

AC-AC conversion involves changing the voltage and/or frequency of an AC supply using transformers. Transformers operate based on electromagnetic induction and can either step up or step down voltage levels. They are commonly used in power distribution systems, adapters, and impedance matching applications.

Applications in Electronics

Power Supplies for Computers and Electronics

Power supplies are a critical component in computers and electronic devices, providing the necessary DC voltage and current to power internal components. Modern power supplies use advanced switching techniques and power factor correction to deliver efficient and stable power. They also incorporate protection features like overvoltage, overcurrent, and short circuit protection to safeguard connected devices.

Motor Drives and Control Systems

Motor drives are used to control the speed, torque, and direction of electric motors. Power devices play a vital role in these drives, converting and regulating electrical power to match the motor's requirements. Applications range from industrial automation and robotics to automotive propulsion systems. Advanced motor control techniques, such as field-oriented control (FOC), rely on precise power management to achieve optimal performance.

Renewable Energy Systems (Solar, Wind)

Renewable energy systems, such as solar panels and wind turbines, generate electricity that needs to be converted and managed efficiently. Power devices are used in inverters to convert the DC output of solar panels into grid-compatible AC power. Similarly, in wind energy systems, power converters regulate the variable output of wind turbines to maintain a steady supply of electricity. Efficient power management is crucial for maximizing energy harvest and integrating renewable sources into the power grid.

Automotive Electronics (Battery Management, EV Charging)

Automotive electronics, particularly in electric vehicles (EVs), rely heavily on advanced power devices for battery management and charging. Battery management systems (BMS) use power devices to monitor and balance individual battery cells, ensuring safe and efficient operation. EV chargers employ high-power converters to rapidly charge batteries while maintaining safety and compatibility with different power sources.

Conclusion

Recap of Power Devices in Electronics

In summary, power devices are indispensable components in modern electronic systems, managing electrical power with precision and efficiency. From discrete semiconductor devices to complex integrated circuits, each type of power device plays a unique role in power conversion, control, and protection. Understanding their functional principles and applications is essential for designing reliable and efficient electronic systems.

Outlook for Future Developments and Applications

The future of power devices looks promising, with ongoing research focused on enhancing efficiency, reducing size, and improving durability. Advancements in materials science, such as the development of wide-bandgap semiconductors, will enable the creation of more efficient and robust power devices. Additionally, the integration of artificial intelligence and machine learning into power management systems will lead to smarter and more adaptive electronic devices. As technology continues to evolve, power devices will remain at the forefront of innovation, driving progress across various industries.
