What Are the Different Types of Zener Diode?
Lgesemi: Zener diodes play a pivotal role in modern electronics, offering unmatched reliability in maintaining stable voltages under reverse bias conditions. This unique behavior makes them indispensable in circuits that demand precise voltage regulation and protection against voltage fluctuations.
What is a Zener Diode?
A Zener diode is a specialized semiconductor device that allows current to flow in the reverse direction when the voltage across it exceeds its breakdown voltage, also known as the Zener voltage. Unlike standard diodes, which block reverse current, Zener diodes maintain a stable voltage across their terminals, even when subjected to substantial variations in input voltage or load. This characteristic is widely utilized in power regulation, signal conditioning, and surge suppression.
Key Functions of Zener Diodes in Electronics
Zener diodes are foundational to numerous applications, including:
- Voltage Regulation: Providing a steady output voltage for sensitive components.
- Overvoltage Protection: Shielding circuits from transient voltage spikes.
- Reference Voltage Source: Offering a stable reference for measurement systems and analog circuits.
Types of Zener Diodes
Zener diodes come in various types tailored to specific use cases. Below is a detailed classification:
1. Standard Zener Diode
Characteristics
- Breakdown Voltage: Ranges from 2V to 200V.
- Power Dissipation: Typically supports up to 1W.
- Temperature Coefficient: Moderate, with predictable variations.
Applications
- Voltage regulation in basic electronic circuits.
- Signal clipping in audio or video systems.
- Stabilizing transistor biasing in amplifiers.
2. Low-Voltage Zener Diode
Special Features
- Voltage Range: Below 5V.
- Efficiency: Optimized for low-voltage circuits.
Use Cases
- Powering portable electronics such as smartphones and tablets.
- Supporting precision devices like laboratory-grade measuring instruments.
- Safeguarding integrated circuits (ICs) in consumer electronics.
3. High-Voltage Zener Diode
Designed for High-Stress Environments
- Voltage Capacity: Capable of handling over 100V.
- Enhanced Power Dissipation: Supports high current and thermal loads.
Primary Applications
- Voltage stabilization in high-voltage power supply units (PSUs).
- Protection for industrial control systems against voltage transients.
- Ensuring signal integrity in telecommunication equipment.

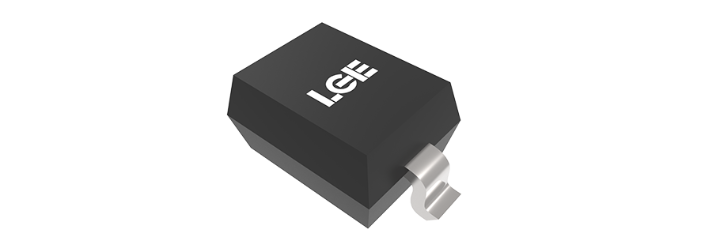

4. Surface Mount Zener Diode (SMD)
Advantages of Compact Design
- Miniature Size: Ideal for high-density PCB layouts.
- Automation Compatibility: Perfect for modern, automated manufacturing processes.
Popular Integration Areas
- Consumer devices like laptops and wearables.
- Automotive electronics, including ADAS (Advanced Driver-Assistance Systems).
- Precision medical devices where size and efficiency are critical.
5. Power Zener Diode
Robust for High-Power Applications
- Power Ratings: Exceeds 5W in many cases.
- Thermal Stability: Engineered for sustained high-power operation.
Applications
- Regulating voltage in switching power supplies.
- Managing energy flow in renewable systems like solar inverters.
- Protecting capacitors and batteries from overvoltage.
6. Temperature-Compensated Zener Diode
Superior Temperature Stability
- Low Temperature Coefficient: Minimizes drift caused by temperature changes.
- Enhanced Voltage Precision: Operates reliably over wide temperature ranges.
Ideal For
- High-accuracy instruments and control systems.
- Critical communication equipment operating in variable environments.
- Aerospace and military-grade electronics requiring consistent performance.
7. Bidirectional Zener Diode (TVS)
Dual Direction Surge Suppression
- Quick Response: Activates in picoseconds to clamp surges.
- Bidirectional Capability: Handles voltage spikes in both polarities.
Real-World Applications
- Protecting USB, HDMI, and Ethernet data lines from ESD and lightning.
- Safeguarding automotive circuits from load dumps and transient spikes.
How to Select the Right Zener Diode
Selecting the right Zener diode is crucial for ensuring the reliability and efficiency of your circuit. Key considerations include:
1. Voltage Rating
Choose a Zener diode with a breakdown voltage that matches the desired output or protection level. For instance:
- For voltage regulation, select a diode slightly above the desired output voltage.
- For protection, ensure the voltage rating exceeds anticipated spikes.
2. Power Dissipation
Ensure the diode can handle the circuit's power demands without overheating. Consider models with adequate heat dissipation for high-current environments.
3. Packaging and Form Factor
For space-limited designs, surface-mount diodes are preferred. Through-hole diodes are better suited for robust and easily replaceable setups.
4. Temperature Stability
Applications exposed to temperature fluctuations benefit from temperature-compensated diodes to ensure consistent performance.
5. Reverse Current Capacity
The diode must withstand the required reverse current without exceeding its maximum rated capacity.
Applications of Zener Diodes
Zener diodes serve in a broad range of industries, providing critical functionality such as:
Voltage Regulation
Ensuring stable voltage delivery to components, even under fluctuating input or load conditions, is a cornerstone of Zener diode usage.
Overvoltage Protection
By clamping excessive voltages, Zener diodes protect delicate components in power supplies and communication systems.
Reference Voltage
Precision instrumentation relies on Zener diodes for stable reference voltages, essential for accurate measurements and reliable operations.
Specialized Industry Applications
- Medical Devices: Delivering consistent voltage to sensitive diagnostic equipment.
- Telecommunications: Protecting data lines from transient spikes.
- Renewable Energy: Stabilizing power in solar and wind energy systems.
Conclusion
Zener diodes are indispensable components in the world of electronics. From basic voltage regulation to advanced surge suppression, their versatility and reliability make them a cornerstone of modern technology. Understanding the various types, characteristics, and applications ensures the correct selection and implementation of Zener diodes in any project. By carefully considering factors like voltage rating, power dissipation, and thermal stability, engineers can achieve optimal performance, durability, and safety in their designs. Whether it's a compact consumer device or a robust industrial system, Zener diodes are key to ensuring reliable and efficient operation.
