     Lgesemi:     In the field of electronics, thyristors and triacs are essential semiconductor devices used for efficient power management and control. These devices are widely employed in both industrial and consumer electronics, providing reliable switching and regulation of electrical power. Their versatility and robustness make them indispensable in modern electronic systems. This article explores the definitions, working principles, characteristics, and applications of thyristors and triacs, highlighting their crucial role in electronics.

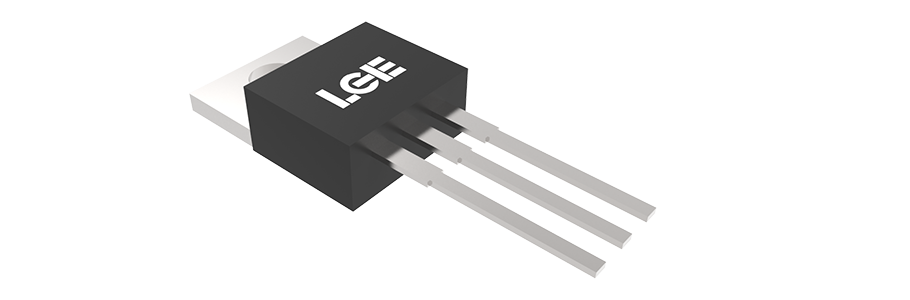

Definition of Thyristor

A thyristor is a four-layered semiconductor device with alternating p-type and n-type materials, forming three junctions (pnpn structure). It operates as a unidirectional switch, allowing current to flow only in one direction when triggered. Once activated by a small pulse at its gate terminal, the thyristor remains in the conducting state until the current through it falls below a specified threshold, known as the holding current.

Thyristors are available in several variations, including:

1. Silicon-Controlled Rectifier (SCR): The most common type, used for general switching.
2. Gate Turn-Off Thyristor (GTO): Allows both turning on and off using a gate signal.
3. Light-Triggered Thyristor (LTT): Triggered by optical signals, offering isolation from control circuits.

Their latching behavior makes thyristors ideal for high-power, steady-state applications like rectification and phase control.

Definition of Triac

A triac (Triode for Alternating Current) is a bidirectional thyristor designed for AC applications. It has a similar four-layered structure but allows current conduction in both directions, making it suitable for controlling alternating current loads.

The triac is triggered using a gate signal, after which it remains in the conducting state until the current falls below the holding current. This bidirectional conductivity eliminates the need for additional components in AC power control circuits, making triacs a preferred choice for applications like dimming, motor control, and heating systems.

Operating Principles

How Thyristors Work

Thyristors function based on controlled switching. When a small current pulse is applied to the gate terminal, it turns the device on, allowing current to flow from the anode to the cathode. This creates a low-resistance path, effectively switching the thyristor "on." To turn it "off," the current through the thyristor must drop below the holding current, which typically occurs when the load is disconnected or the power supply is interrupted.

How Triacs Work

Triacs operate similarly to thyristors but can conduct current in both directions. When a small pulse is applied to the gate terminal, the triac switches on, allowing current to flow between the main terminals (MT1 and MT2) in either direction. The device remains on until the current falls below the holding current, typically at the zero-crossing point of the AC waveform. This feature makes triacs ideal for AC phase control and bidirectional power switching.

Characteristics and Properties

Key Features of Thyristors

1. Unidirectional Conductivity: Current flows in only one direction.
2. Latching Behavior: Stays on once triggered until the current falls below the holding current.
3. High Current and Voltage Ratings: Suitable for high-power applications.
4. Low Forward Voltage Drop: Ensures efficient operation.
5. Controlled Switching: Triggered by a small gate signal.

Key Features of Triacs

1. Bidirectional Conductivity: Ideal for AC loads.
2. Latching Behavior: Maintains conduction until the current falls below the holding current.
3. High Current Handling: Suitable for high-power AC applications.
4. Low Power Triggering: Operates with a small gate current.
5. Versatile Control: Supports phase control for smooth regulation of power delivery.

Applications

Thyristor Applications

Thyristors are widely used in DC and AC power control, including:

1. Light Dimming: Regulate brightness in incandescent and halogen lamps by controlling the current flow.
2. Motor Speed Control: Adjust the speed of DC and AC motors by varying the applied voltage.
3. Temperature Control: Maintain desired temperatures in heating elements.
4. Rectification: Convert AC to DC in power supplies.
5. Overvoltage Protection: Safeguard circuits against voltage surges.

Triac Applications

Triacs are commonly used in AC power control systems, such as:

1. Lighting Control: Adjust brightness in dimmable lighting systems.
2. Motor Control: Manage speed and torque in single-phase AC motors.
3. Heating Systems: Maintain constant temperatures in electric heaters.
4. Appliance Control: Switch and regulate power in household appliances like fans and air conditioners.
5. Phase Control: Precisely control the power delivered to a load by adjusting the phase angle of the AC waveform.

Comparison: Thyristors vs. Triacs

Advantages

Advantages of Thyristors

1. High power handling capability.
2. Low power loss during operation.
3. Reliable and durable for heavy-duty applications.
4. Cost-effective for DC switching.

Advantages of Triacs

1. Simplifies AC circuit design with bidirectional control.
2. Compact and efficient for AC loads.
3. Smooth dimming and speed control without additional components.
4. Reduces overall system cost by eliminating the need for dual thyristors.

Limitations

Thyristor Limitations

1. Can only conduct in one direction.
2. Requires additional circuitry for AC applications.
3. Limited switching speed compared to modern transistors.

Triac Limitations

1. Prone to false triggering in high-noise environments.
2. Higher sensitivity to dv/dt (rate of voltage change).
3. Limited use in DC applications due to bidirectional nature.

Conclusion

Thyristors and triacs are vital components in modern electronic systems, enabling efficient and reliable control of electrical power. While thyristors excel in DC and rectified AC applications, triacs are specifically designed for AC power management. Their unique features, including high power capacity, latching behavior, and controllability, make them indispensable in a wide range of applications, from motor speed control to lighting and heating systems. Understanding their working principles and characteristics allows engineers to harness their full potential, advancing technologies in energy-efficient and automated systems.

FAQs

1. What is the primary difference between thyristors and triacs?
   Thyristors conduct current in one direction, making them suitable for DC applications, while triacs conduct in both directions, making them ideal for AC applications.

2. Can triacs replace thyristors in all applications?
   No, triacs are not suitable for DC applications, as they are designed for bidirectional conduction, which is primarily required in AC systems.

3. What are the typical applications of thyristors?
   Thyristors are used in light dimming, motor control, temperature regulation, rectification, and overvoltage protection.

4. How do triacs contribute to energy efficiency?
   By enabling precise phase control, triacs minimize energy waste in applications like motor speed regulation and lighting dimming.
