What Information Can I Find in a Zener Diode Datasheet?

 Introduction to Zener Diode Datasheets

A datasheet is a comprehensive document provided by the manufacturer that outlines the technical specifications and characteristics of a Zener diode. It serves as a guide for selecting the right component, designing circuits, and ensuring reliable operation. Understanding the information in a datasheet is vital for optimizing the performance and longevity of the Zener diode in your application.

Importance of Datasheets in Component Selection

Selecting the right Zener diode for a specific application requires careful consideration of its electrical, mechanical, and thermal properties. A datasheet provides critical information that helps engineers make informed decisions, ensuring that the chosen component meets the required specifications and operates reliably under the intended conditions. Proper interpretation of the datasheet can prevent issues such as component failure, poor performance, or excessive power dissipation.

Key Information in a Zener Diode Datasheet

Electrical Characteristics

1. Reverse Breakdown Voltage (VZ​)
   • This is the voltage at which the Zener diode begins to conduct in the reverse direction. It is the primary parameter for voltage regulation applications. Datasheets typically list the nominal Zener voltage along with its tolerance range (e.g., ±5%).
2. Zener Impedance (ZZ​)
   • Zener impedance represents the small change in voltage across the diode for a given change in current. Lower impedance indicates better voltage regulation. The datasheet usually provides typical and maximum values for ZZ​ at specific test currents.
3. Power Dissipation (Pmax​)
   • This specifies the maximum power the diode can dissipate without overheating. It is crucial for applications involving high currents or voltages. The datasheet lists the maximum power dissipation in watts (W) and may include thermal resistance (θJA​) values for different packaging options.
4. Temperature Coefficient
   • The temperature coefficient indicates how the Zener voltage changes with temperature. It is typically given in mV/°C and helps in understanding the diode's performance in varying temperature conditions.
5. Forward Voltage (VF​)
   • This is the voltage drop across the diode when it is forward-biased. It is important for applications involving forward conduction, such as current limiting or signal clipping.
6. Reverse Current (IR​)
   • The reverse leakage current is the small current that flows through the diode when it is reverse-biased but below the breakdown voltage. The datasheet provides typical and maximum values for IR​ at specific reverse voltages.

Mechanical Dimensions and Packaging

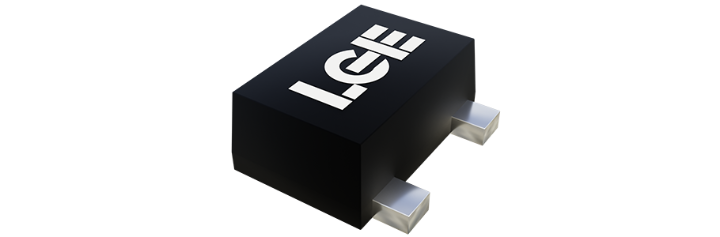

Datasheets provide detailed information about the physical dimensions, packaging types (e.g., DO-41, TO-220), and mechanical drawings. This information is essential for ensuring compatibility with the PCB layout and mechanical design.

Reliability and Lifetime Data

Datasheets often include information on the reliability and expected lifetime of the Zener diode. This may include data on failure rates, derating curves, and operating temperature ranges. Understanding these parameters helps in designing circuits with long-term reliability.

Mounting and Soldering Instructions

Proper mounting and soldering are crucial for ensuring the diode's performance and longevity. Datasheets provide guidelines on recommended soldering temperatures, thermal management techniques, and mechanical stress limitations.

How to Read and Interpret a Datasheet

Units and Symbols

Datasheets use standardized units and symbols to describe electrical and mechanical parameters. Familiarize yourself with these units (e.g., volts, ohms, watts) and symbols (e.g., VZ​, ZZ​) to accurately interpret the information.

Test Conditions

Datasheets specify the test conditions under which the parameters are measured. These conditions include specific currents, temperatures, and voltages. Understanding these conditions helps in comparing different diodes and ensuring that the selected component will perform as expected in your application.

Typical and Maximum Values

Datasheets provide typical values for key parameters, which represent the expected performance under standard conditions. They also list maximum and minimum values, which define the operating range of the diode. Always design your circuit to accommodate the worst-case scenario (maximum or minimum values) to ensure reliable operation.

Curves and Graphs

Datasheets often include graphical representations of the diode's performance, such as current-voltage (I-V) curves, power dissipation vs. temperature, or Zener impedance vs. current. These graphs provide a visual understanding of the diode's behavior and help in evaluating its suitability for specific applications.

Example Datasheet Analysis

Identifying Key Specifications

When analyzing a Zener diode datasheet, focus on the following key specifications:

• Reverse Breakdown Voltage (VZ​): Ensure it matches your required regulation voltage.
• Zener Impedance (ZZ​): Lower impedance is preferred for better regulation.
• Power Dissipation (Pmax​): Ensure it is sufficient for your application.
• Temperature Coefficient: Consider its impact on voltage stability in your operating temperature range.

Comparing Different Zener Diodes

Compare the specifications of different Zener diodes to select the best option for your application. Pay attention to parameters such as VZ​, ZZ​, Pmax​, and temperature coefficient. Use the datasheet's typical and maximum values to evaluate performance and reliability.

Tips for Effective Datasheet Use

Cross-Referencing with Application Notes

Manufacturers often provide application notes that offer additional insights and design tips for using their components. Cross-referencing the datasheet with application notes can provide a deeper understanding of the diode's behavior and potential applications.

Contacting Manufacturer for Clarification

If you have questions or need clarification on specific parameters, do not hesitate to contact the manufacturer's technical support. They can provide detailed explanations and guidance based on your application requirements.

Conclusion and Final Thoughts

A Zener diode datasheet is a critical resource for selecting the right component and ensuring its reliable operation in your application. By understanding the key information in the datasheet, including electrical characteristics, mechanical dimensions, and reliability data, you can make informed decisions. Effective interpretation of the datasheet, along with cross-referencing application notes and seeking manufacturer support, will help you optimize the performance and longevity of your Zener diode.
