What is a 12 Volt Bridge Rectifier and How Does It Work?

Introduction to 12 Volt Bridge Rectifiers

Definition and purpose

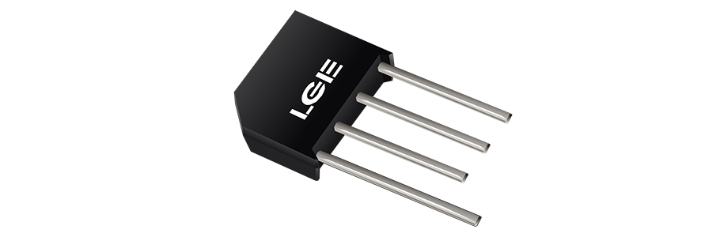

A 12 volt bridge rectifier is a type of rectifier circuit that uses four diodes arranged in a bridge configuration. Its primary purpose is to convert AC voltage into a stable DC voltage, typically around 12 volts. This conversion is necessary because many electronic devices and systems operate on DC power, while the mains electricity supply is in the form of AC. By using a 12 volt bridge rectifier, we can ensure that these devices receive the appropriate voltage and current they need to function properly.

Common applications

12 volt bridge rectifiers are widely used in a variety of applications, including:

• Power supplies for electronic devices such as computers, televisions, and audio amplifiers.
• Charging batteries in vehicles, boats, and other mobile equipment.
• Converting AC power from the mains supply to DC power for industrial machinery and equipment.
• Providing DC power for solar panels and wind turbines in renewable energy systems. These are just a few examples, but the versatility of 12 volt bridge rectifiers makes them an indispensable component in numerous fields.

Components of a 12 Volt Bridge Rectifier

To understand how a 12 volt bridge rectifier works, let's take a closer look at its key components:

Diodes

Diodes are semiconductor devices that allow current to flow in only one direction. In a bridge rectifier, four diodes are arranged in a specific configuration to achieve the desired rectification of AC to DC. The diodes are connected in pairs, with each pair conducting during opposite halves of the AC cycle. This arrangement ensures that the output voltage is always in the same direction, resulting in a DC signal.

Transformer (optional)

In some cases, a transformer may be used before the bridge rectifier to step down or step up the AC voltage to the desired level. For example, if the input AC voltage is higher than 12 volts, a step-down transformer can be used to reduce it to a more suitable level. Conversely, if the input AC voltage is lower than 12 volts, a step-up transformer can be employed to increase it. However, it's important to note that not all 12 volt bridge rectifiers require a transformer, as the choice depends on the specific application and input voltage requirements.

Heat sink (optional)

When a bridge rectifier is operating, it dissipates heat due to the power losses in the diodes. To prevent overheating and ensure the longevity of the rectifier, a heat sink may be attached to the diodes. A heat sink is a metal component designed to absorb and dissipate heat away from the diodes, keeping their temperature within safe limits. The use of a heat sink is particularly important in high-power applications where the heat generated can be significant.

How a 12 Volt Bridge Rectifier Works

Now that we have covered the components of a 12 volt bridge rectifier, let's explore how it actually works to convert AC to DC:

AC input and DC output

The process begins with an AC input voltage, which can vary in both amplitude and polarity. This AC voltage is applied to the input terminals of the bridge rectifier. The diodes in the bridge configuration then start to conduct current during different halves of the AC cycle. During the positive half-cycle, two diodes conduct, allowing current to flow through the load in one direction. During the negative half-cycle, the other two diodes conduct, maintaining the current flow in the same direction through the load. As a result, the output voltage across the load is a pulsating DC voltage, with a constant polarity.

Rectification process

The rectification process involves the conversion of the AC input voltage into a DC output voltage. As mentioned earlier, the diodes in the bridge rectifier conduct during alternate halves of the AC cycle, effectively "chopping off" the negative half-cycles and allowing only the positive half-cycles to pass through. This results in a pulsating DC voltage at the output, with a frequency twice that of the input AC voltage.

Waveform analysis

To better understand the operation of a 12 volt bridge rectifier, let's analyze the waveform of the input AC voltage and the output DC voltage. The input AC voltage is a sine wave, oscillating between positive and negative peaks. After passing through the bridge rectifier, the output voltage becomes a series of pulses, with each pulse corresponding to a positive half-cycle of the input AC voltage. The amplitude of these pulses is approximately equal to the peak value of the input AC voltage minus the forward voltage drop across the diodes. The output voltage is then smoothed using a filter capacitor to reduce the ripple and provide a more stable DC voltage.

Selection and Usage Tips for 12 Volt Bridge Rectifiers

When selecting and using a 12 volt bridge rectifier, there are several factors to consider to ensure optimal performance and reliability:

Rating and specifications

It is important to choose a bridge rectifier with the appropriate rating and specifications for your application. The key parameters to consider include:

• Input voltage: Ensure that the bridge rectifier can handle the maximum expected input voltage without exceeding its voltage rating.
• Output current: Determine the required output current for your device or system and select a bridge rectifier with a sufficient current rating.
• Power dissipation: Calculate the expected power dissipation in the bridge rectifier based on the input voltage, output current, and efficiency. Choose a rectifier that can handle this power dissipation without overheating.
• Reverse voltage: Check the reverse voltage rating of the diodes in the bridge rectifier to ensure they can withstand the maximum reverse voltage that may occur during operation.

Safety considerations

Safety is paramount when working with electrical components. Here are some important safety considerations when using a 12 volt bridge rectifier:

• Electrical insulation: Ensure that the bridge rectifier is properly insulated to prevent electrical shock and short circuits. Use appropriate insulation materials and follow proper wiring practices.
• Overcurrent protection: Incorporate fuses or circuit breakers in the circuit to protect against overcurrent conditions that could damage the bridge rectifier or other components.
• Heat management: If the bridge rectifier is likely to generate significant heat, make sure it is adequately cooled using a heat sink or other cooling methods. Overheating can lead to reduced performance and premature failure.

Troubleshooting and maintenance

Like any electronic component, a 12 volt bridge rectifier may encounter issues over time. Here are some common troubleshooting tips and maintenance practices:

• Visual inspection: Regularly inspect the bridge rectifier for any signs of physical damage, such as cracks in the casing or loose connections. Also, check for any signs of overheating, such as discoloration or melting of the solder joints.
• Testing: Use a multimeter to test the functionality of the bridge rectifier. Measure the input AC voltage and the output DC voltage to ensure they are within the expected range. If the output voltage is significantly lower than expected, it may indicate a problem with the diodes or other components.
• Cleaning: Keep the bridge rectifier clean and free from dust and debris. Dust buildup can affect its performance and lead to overheating. Use a soft brush or compressed air to clean the surface of the rectifier.
• Replacing faulty components: If you identify any faulty components in the bridge rectifier, such as a burned-out diode, replace them promptly with genuine replacement parts. Follow the manufacturer's instructions for replacing the components and ensure proper installation.

By following these selection and usage tips, you can maximize the performance and lifespan of your 12 volt bridge rectifier.

In conclusion, a 12 volt bridge rectifier is a vital component in converting AC to DC power. It consists of diodes arranged in a bridge configuration, along with optional components like transformers and heat sinks. The rectification process involves converting the AC input into a pulsating DC output, which is then smoothed to provide a stable DC voltage. When selecting and using a 12 volt bridge rectifier, it is important to consider factors such as rating and specifications, safety precautions, and troubleshooting techniques. By understanding how a 12 volt bridge rectifier works and following proper maintenance practices, you can ensure reliable and efficient operation of your electronic devices and systems.
