What is a Dimmable Triac and How Does It Work?
Lgesemi: A dimmable TRIAC (Triode for Alternating Current) is a semiconductor device designed to control the power supplied to electrical loads, primarily for dimming lights. Unlike basic on-off switches, a TRIAC enables smooth and adjustable control over brightness by regulating the energy flow to the light source. Its bidirectional switching capability makes it suitable for alternating current (AC) applications, allowing for precise adjustments while optimizing energy efficiency.

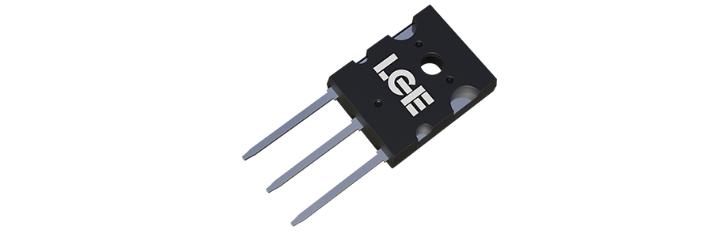

Introduction to Dimmable Triac
Importance in Electronic Circuits
Dimmable TRIACs are crucial in modern electronics, offering flexibility and efficiency in managing electrical loads. These devices are widely used in residential, commercial, and industrial settings where controlling light intensity or motor speed is essential. By integrating TRIACs into circuits, designers can achieve energy savings, enhance user comfort, and create customizable environments, such as mood lighting or variable-speed motors.
Principles of Operation
The TRIAC operates as a bidirectional switch that conducts current during both the positive and negative halves of an AC cycle. It consists of two thyristors connected in parallel but in opposite polarities, allowing for control of the entire AC waveform. The TRIAC is triggered by a small gate pulse, which enables conduction. Once activated, it remains in conduction mode until the current flowing through it drops below a specific level, known as the holding current.
How a Triac Works
Gate Triggering and Holding Current
The TRIAC's operation begins with a trigger pulse applied to its gate terminal. This pulse can be synchronized with the AC cycle to control the portion of the waveform allowed to pass through the device, thus adjusting the power delivered to the load.
- Gate Triggering: The TRIAC requires a small current pulse at its gate to initiate conduction. This pulse can be generated by control circuits, including microcontrollers or phase-control circuits.
- Holding Current: Once triggered, the TRIAC stays in conduction as long as the load current remains above the holding current. If the current drops below this level, the TRIAC turns off and waits for the next gate pulse.
Phase-Cut Dimming
The dimming effect in TRIAC-based circuits is achieved using phase-cut control, which modifies the AC waveform:
- Leading-Edge Dimming: The TRIAC delays the start of each half-cycle by turning on later, effectively "cutting" the initial portion of the waveform. This is commonly used for resistive loads like incandescent bulbs.
- Trailing-Edge Dimming: The TRIAC turns off before the end of each half-cycle, cutting the latter part of the waveform. This method is more suitable for modern LED and CFL bulbs, as it reduces stress on the components.
Control Circuit Integration
TRIACs are often paired with control circuits to automate and refine their operation. For example:
- Optocouplers: Provide electrical isolation between high-power TRIAC circuits and low-power control circuits.
- Microcontrollers: Enable programmable dimming levels and integration into smart lighting systems.
Applications of Dimmable Triac
Lighting Control
The most common application of dimmable TRIACs is in dimmer switches for lighting systems. These switches allow users to adjust brightness levels, creating ambiance or reducing glare in various settings such as homes, theaters, and restaurants. TRIACs are particularly effective with traditional incandescent and halogen bulbs, and specialized models are available for LED and CFL compatibility.
Home Automation
In smart home systems, TRIACs are integrated with sensors, timers, and remote controls, enabling automation of lighting based on time of day, occupancy, or energy-saving schedules. For instance:
- Lights can automatically dim during evening hours.
- Occupancy sensors can trigger lights to turn on or off, improving efficiency.
Industrial and Commercial Use
TRIACs are widely employed in industrial and commercial environments where precise control over electrical loads is necessary:
- Manufacturing Plants: Control the speed of conveyor belts, mixers, and other motor-driven systems.
- Retail Stores: Adjust lighting intensity to highlight products and improve customer experience.
- HVAC Systems: Regulate fan speed and heating elements for energy-efficient climate control.
Advantages and Disadvantages
Advantages
- Energy Efficiency: TRIACs minimize wasted energy by controlling power at the source, reducing electricity usage.
- Smooth Dimming: Enables seamless transitions between brightness levels, enhancing comfort and visual appeal.
- Longevity and Reliability: With no moving parts, TRIACs offer high durability and require minimal maintenance.
- Compact Design: Their small size allows for integration into modern lighting fixtures and compact control devices.
Disadvantages
- Compatibility Issues: Older TRIACs may not work effectively with certain LED and CFL lights, requiring specialized dimmer designs.
- Heat Generation: TRIACs dissipate heat during operation, necessitating adequate heat sinks or cooling mechanisms.
- Complexity of Circuits: Designing and troubleshooting TRIAC-based systems can be more challenging than simpler on-off circuits.
- Electromagnetic Interference (EMI): The rapid switching action of TRIACs can generate electrical noise, requiring additional filtering components.
Conclusion
A dimmable TRIAC is an essential semiconductor device for controlling AC power in lighting and other electrical loads. Its ability to regulate brightness through phase-cut dimming makes it invaluable in applications ranging from residential lighting to industrial automation. While TRIACs may pose challenges such as compatibility and heat management, their benefits—efficiency, reliability, and smooth operation—far outweigh these drawbacks.
As technology advances, TRIACs are becoming more versatile, with improved compatibility for modern lighting systems like LEDs. Whether you're upgrading your home's lighting or designing a sophisticated automation system, understanding the principles and applications of dimmable TRIACs will help you make informed decisions that enhance both functionality and user experience.
FAQs
Q1: Can a TRIAC dimmer switch be used with LED lights?
A: Yes, but only with LED lights that are labeled as "dimmable" and compatible with TRIAC dimmers. Using an incompatible LED may result in flickering or uneven dimming. Always check the specifications of both the dimmer and the light.
Q2: What are the key differences between leading-edge and trailing-edge dimming?
A:
- Leading-edge dimming cuts the beginning of the AC waveform and is suited for resistive loads like incandescent bulbs.
- Trailing-edge dimming cuts the end of the waveform and is better for low-power, capacitive loads like LEDs and CFLs.
Q3: How can I reduce the heat generated by a TRIAC?
A: Heat generation can be minimized by:
- Ensuring the TRIAC operates within its rated current range.
- Using a heat sink or mounting the TRIAC on a thermally conductive surface.
- Implementing efficient load control to avoid overloading the device.
Q4: Is it safe to install a TRIAC dimmer switch on my own?
A: While installation is straightforward for experienced individuals, it’s always safer to hire a licensed electrician, especially if you are unfamiliar with electrical systems. Proper installation ensures safety and compliance with local regulations.
