     Lgesemi:        Triac (Triode for Alternating Current) is a versatile semiconductor device that plays a crucial role in controlling alternating current (AC) power across various electrical systems. It functions as a bidirectional electronic switch, allowing precise regulation of current flow in response to a control signal. Triacs are commonly used in applications such as light dimming, motor speed regulation, and heating element control. This article explores the triac's structure, operation, advantages, limitations, and wide-ranging applications in modern electronics.

What is a Triac Component and Its Applications?

Introduction to Triac Components

In electrical engineering, triacs serve as indispensable tools for controlling AC power efficiently and reliably. Their ability to modulate power makes them a fundamental component in industrial, commercial, and consumer electronics. This article provides an in-depth examination of the definition, basic principles, importance, structure, working mechanism, and applications of triacs, along with their advantages and challenges.

Definition and Basic Principles

A triac is a type of thyristor capable of conducting current in both directions. It is primarily used for controlling AC power, which involves managing the flow of current through a load. The device operates based on phase control, a method where the point in the AC waveform at which conduction begins is adjusted. This enables the regulation of the average power delivered to the load.

The triac remains non-conductive until a gate pulse is applied, triggering it into conduction. Once triggered, the device continues to conduct until the current through it falls below a certain threshold, known as the holding current. This self-latching feature eliminates the need for continuous gate signals, making triacs ideal for AC power control applications.

Importance in AC Power Control

Triacs are particularly valuable in scenarios where precise control of AC power is essential. They allow for:

  • Smooth Dimming: Adjusting light intensity for energy efficiency and ambiance.
  • Variable Motor Speed: Controlling speed in fans, mixers, and industrial machinery.
  • Temperature Regulation: Managing power in electric heaters and ovens for accurate temperature control.

These capabilities make triacs central to energy-efficient systems, automated devices, and modern electrical solutions.

Structure and Working Mechanism

Physical Structure

The triac’s structure consists of:

  • Main Terminals (MT1 and MT2): The terminals through which the AC current flows.
  • Gate Terminal: The control input that initiates conduction.
  • pnpn Semiconductor Layers: A multi-layered silicon structure enabling bidirectional current flow.

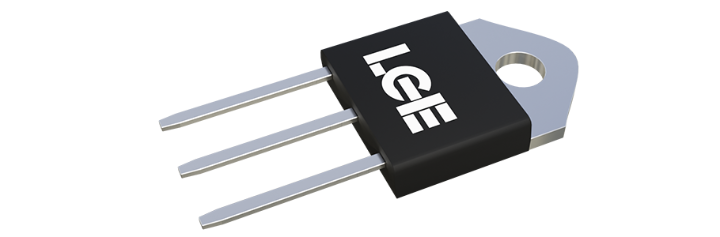

The entire assembly is encapsulated in a durable package with leads for external connections. This design ensures reliability under varying environmental conditions.

Working Mechanism

  1. Triggering Process: A small pulse applied to the gate terminal activates the triac.
  2. Conduction Phase: The triac conducts current in either direction depending on the polarity of the AC waveform.
  3. Switch-Off: When the AC current falls below the holding current at the end of a half-cycle, the triac turns off.

By varying the timing of the gate pulse relative to the AC cycle, the device modulates the amount of power delivered to the load. This technique, called phase angle control, is fundamental to the triac's operation in dimming and speed regulation.

Applications of Triac Components

Triacs are widely used due to their adaptability and reliability. Some of their key applications include:

1. Lighting Control

Triacs are integral to dimmer switches, enabling users to adjust light brightness by modulating the AC waveform. Common applications include:

  • Residential Lighting: Creating a cozy ambiance.
  • Commercial Spaces: Reducing energy consumption and enhancing lighting flexibility.
  • Entertainment Systems: Precise dimming for stage lighting in theaters.

By controlling the phase angle, triacs can smoothly vary the brightness from full intensity to complete darkness.

2. Motor Speed Regulation

In motor control, triacs regulate speed by varying the power delivered:

  • Fans and Blowers: Adjust airflow in HVAC systems.
  • Conveyor Belts: Fine-tune speed in production lines for efficiency.
  • Household Appliances: Control motors in devices like mixers and washing machines.

This precise power modulation ensures optimal performance while minimizing energy waste.

3. Heating Element Management

Triacs provide precise control over heating systems by varying power to the heating element:

  • Electric Stoves and Ovens: Maintain consistent cooking temperatures.
  • Water Heaters: Optimize power usage for energy-efficient operation.
  • Industrial Heating: Manage temperature-critical processes with precision.

4. Smart Home Automation

In automated systems, triacs integrate with sensors and controllers for advanced functionalities:

  • Adaptive Lighting: Lights that respond to occupancy, time, or external conditions.
  • Remote Control Devices: Enable users to adjust settings via apps or remotes.
  • Energy Management Systems: Automatically adjust power usage based on real-time requirements.

Advantages and Limitations

Advantages

  1. Efficient Power Control: Triacs enable smooth and precise modulation of AC power.
  2. Compact and Durable: Their solid-state nature ensures longevity and reliability.
  3. Cost-Effective: Triacs offer an affordable solution for most AC control needs.
  4. Versatile Applications: Usable in lighting, motors, heating, and automation systems.

Limitations

  1. Noise Sensitivity: Electrical noise can interfere with triac operation, requiring additional filters.
  2. Temperature Dependence: High temperatures can affect performance, necessitating proper heat dissipation.
  3. Limited High-Frequency Applications: Triacs are slower than MOSFETs or IGBTs, restricting their use in high-frequency systems.
  4. Compatibility Issues: Some modern LED and CFL lights may not work with standard triac dimmers.

Conclusion

The triac component is an indispensable tool in modern electronics, enabling efficient and reliable control of AC power in diverse applications. From dimming lights to regulating motors and controlling heating elements, triacs have become a cornerstone of energy-efficient designs. Despite their limitations, their affordability, durability, and effectiveness make them a preferred choice for many engineers and manufacturers.

As technology advances, triacs are evolving to meet the demands of newer systems, expanding their compatibility and improving their efficiency. Whether you’re developing a smart home system or optimizing an industrial process, understanding how to effectively use triacs can lead to better performance and cost savings.

FAQs

1. What is the difference between a triac and a thyristor?

While both are thyristor-based devices, a thyristor conducts current in one direction, making it suitable for DC or unidirectional AC applications. In contrast, a triac conducts in both directions, making it ideal for bidirectional AC control.

2. Are triacs compatible with all LED lights?

No, only dimmable LED bulbs designed for phase-control dimming work with triacs. Using incompatible LEDs can result in flickering or poor dimming performance.

3. How can I troubleshoot a malfunctioning triac circuit?

  • Ensure the gate trigger signal is correct.
  • Verify that the load does not exceed the triac's voltage and current ratings.
  • Check for overheating or visible damage.
  • Use a multimeter to confirm the triac’s on/off behavior.

4. What are suitable alternatives to triacs?

Depending on the application, alternatives include:

  • MOSFETs: For high-speed or high-frequency switching.
  • IGBTs: For high-power industrial systems.
  • Solid-State Relays (SSRs): For switching without phase control.
