Why Should You Choose Triac Relay Over Traditional Relays?

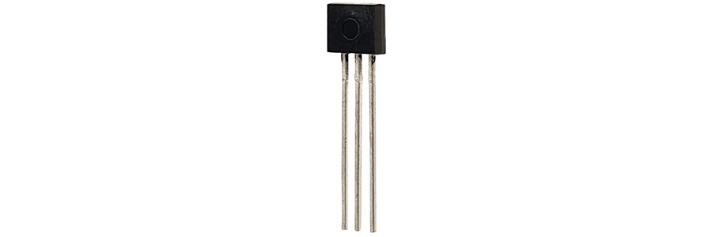

A triac relay is a solid-state device that utilizes a triac, a three-terminal semiconductor component, to control the flow of electricity to a load. Unlike traditional electromechanical relays that rely on physical moving parts, triac relays operate without any mechanical action, making them more durable and longer-lasting. The triac itself functions as a bidirectional switch, allowing current to flow in both directions when triggered, which is particularly useful for AC applications.The triac has three terminals: the gate (G), and the two main terminals, A1 and A2. When a sufficient gate current is applied relative to either A1 or A2, the triac becomes conductive, enabling current to flow between A1 and A2 regardless of the voltage polarity. This bidirectional conductivity is what makes triac relays ideal for controlling AC loads such as lights, motors, and heating elements.

Advantages of Triac Relays

Longevity and Reliability

One of the most significant advantages of triac relays is their exceptional longevity. Traditional electromechanical relays suffer from contact wear and tear due to the constant making and breaking of electrical connections. Over time, this can lead to pitting, welding, or contamination of the contacts, ultimately resulting in relay failure. In contrast, triac relays have no moving parts, eliminating these mechanical issues. A well-designed triac relay can achieve millions of switching cycles without degradation in performance, far surpassing the lifespan of most electromechanical relays.

Silent Operation

Triac relays operate silently since there are no mechanical components to click or chatter. This is a considerable benefit in applications where noise is a concern, such as in residential settings, medical equipment, or office environments. Traditional relays can produce audible clicking sounds that might be disruptive in such settings.

Fast Switching Speed

The solid-state nature of triac relays allows for extremely fast switching speeds. They can respond to trigger signals in microseconds, making them suitable for applications requiring rapid and precise control, such as in industrial automation, lighting control systems, and power regulation circuits.

Low Control Power

Triac relays typically require very little control power to operate. The gate current needed to trigger the triac is minimal, often in the range of milliamperes. This makes them energy-efficient and allows for easier integration with low-power control systems, such as microcontrollers and PLCs (Programmable Logic Controllers).

No Bounce or Arcing

Unlike mechanical relays, triac relays do not exhibit contact bounce or arcing. Contact bounce can cause unwanted voltage spikes and interference in sensitive circuits, while arcing can lead to contact degradation. The smooth switching action of triac relays ensures cleaner electrical transitions and reduces the risk of electromagnetic interference (EMI).

Applications of Triac Relays

Lighting Control

Triac relays are widely used in lighting control systems, especially for dimming applications. By phase-angle controlling the AC waveform, triac relays can adjust the power delivered to incandescent, halogen, or other resistive loads, effectively controlling the brightness of the lights. This method allows for smooth and flicker-free dimming, enhancing user comfort and extending the lifespan of lighting fixtures.

Motor Control

In motor control applications, triac relays provide a reliable means of starting and stopping motors. They can handle the inrush currents associated with motor startup and provide soft-start functionality to reduce mechanical stress on the motor and connected machinery. Additionally, triac relays can be used for speed control in certain types of motors, offering versatile control options.

Heating Systems

For heating systems, triac relays are employed to regulate the power supplied to heating elements. This enables precise temperature control by modulating the heating cycles based on thermostat inputs. The ability to handle high currents makes triac relays suitable for managing the substantial power requirements of heating appliances.

Industrial Automation

In industrial settings, triac relays find applications in various control circuits, solenoid valve actuation, and conveyor system operation. Their fast switching capabilities and compatibility with PLCs make them integral components in automated production lines, where reliability and speed are paramount.

Triac Relay vs. Electromechanical Relay: A Comparative Analysis

To better understand the benefits of triac relays, let's compare them with traditional electromechanical relays across several key parameters:

Parameter	Triac Relay	Electromechanical Relay
Lifespan	Millions of cycles	Thousands to hundreds of thousands of cycles
Switching Speed	Microseconds	Milliseconds
Operational Noise	Silent	Audible clicking
Control Power	Low (milliamps)	Higher (depends on coil rating)
Contact Bounce	None	Present
Arcing	Minimal	Possible, especially at high currents
Cost	Higher initial cost	Lower initial cost
Complexity	Requires driver circuitry	Simple coil driver
Isolation	Electrical isolation via optocoupler	Mechanical isolation

As shown in the table, while triac relays may have a higher initial cost and require more complex driver circuits, their superior performance characteristics make them a worthwhile investment for applications demanding high reliability and frequent switching.

Personal Insights and Recommendations

From my experience at Luguang Electronic, I've observed that triac relays are becoming increasingly popular in modern electronic designs, particularly where space constraints and high cycle life are critical factors. Their ability to integrate seamlessly with digital control systems has made them indispensable in smart home devices, IoT-enabled appliances, and industrial IoT (IIoT) applications.However, it's essential to consider the specific requirements of your application when choosing between triac and electromechanical relays. For instance, if your application involves very high currents or requires true galvanic isolation, traditional relays might still be the better choice. But for most AC load control scenarios, especially those involving frequent switching and moderate power levels, triac relays offer unparalleled advantages.When selecting a triac relay, pay attention to parameters such as the peak repetitive off-state voltage (Vdrm), RMS on-state current (It), gate trigger current (Igt), and thermal characteristics. Ensuring adequate heat dissipation is crucial, as triac relays can generate heat during operation, particularly at higher load currents. Proper heatsinking will prevent thermal runaway and extend the relay's operational life.

Conclusion

Triac relays represent a significant advancement in relay technology, offering numerous benefits over traditional electromechanical relays. Their solid-state construction, fast switching capabilities, and silent operation make them ideal for a wide range of applications in both consumer and industrial electronics. By understanding their working principles, advantages, and appropriate use cases, engineers can make informed decisions that enhance the performance, reliability, and efficiency of their designs.

FAQ

Q1: How do I determine the appropriate gate resistor value for a triac relay?
A1: The gate resistor value depends on the gate trigger current (Igt) specified for the triac and the available gate voltage. A general guideline is to calculate the resistor to ensure sufficient Igt even at lower temperatures, where Igt may increase. For example, if the Igt is 10 mA at 25°C, it might rise to 15 mA at 0°C. Using Ohm's Law, R = V / I, where V is the gate voltage (e.g., 5V) and I is the maximum Igt (15 mA), resulting in a resistor value of approximately 333 ohms. However, it's common practice to use a slightly lower resistance (e.g., 180-220 ohms) to account for voltage drops and ensure reliable triggering.

Q2: Can triac relays be used with inductive loads like motors or transformers?
A2: Yes, triac relays can be used with inductive loads, but additional circuitry may be necessary to handle the reactive component of the load. Inductive loads can cause phase shifts between the voltage and current, potentially preventing the triac from turning off properly at the zero-crossing point. To mitigate this, snubber circuits or zero-crossing detectors can be employed to ensure the triac switches off correctly and prevent unwanted continuous conduction.

Q3: What are the primary failure modes of triac relays, and how can they be prevented?
A3: Triac relays can fail due to overheating, overvoltage conditions, or excessive current surges. To prevent these failures, ensure adequate heat dissipation by using appropriate heatsinks, especially for high-power applications. Implement surge protection devices like varistors or TVS diodes to protect against voltage spikes. Additionally, design the control circuitry to limit gate current to within specified limits and avoid applying excessive voltage across the triac when it's in the off-state. Regular monitoring of the relay's temperature and operating parameters can also help identify potential issues before they lead to failure.
